3inch thermal printer mechanism
Fujitsu FTP-638MCL103 compatible
Compact design, straight paper path

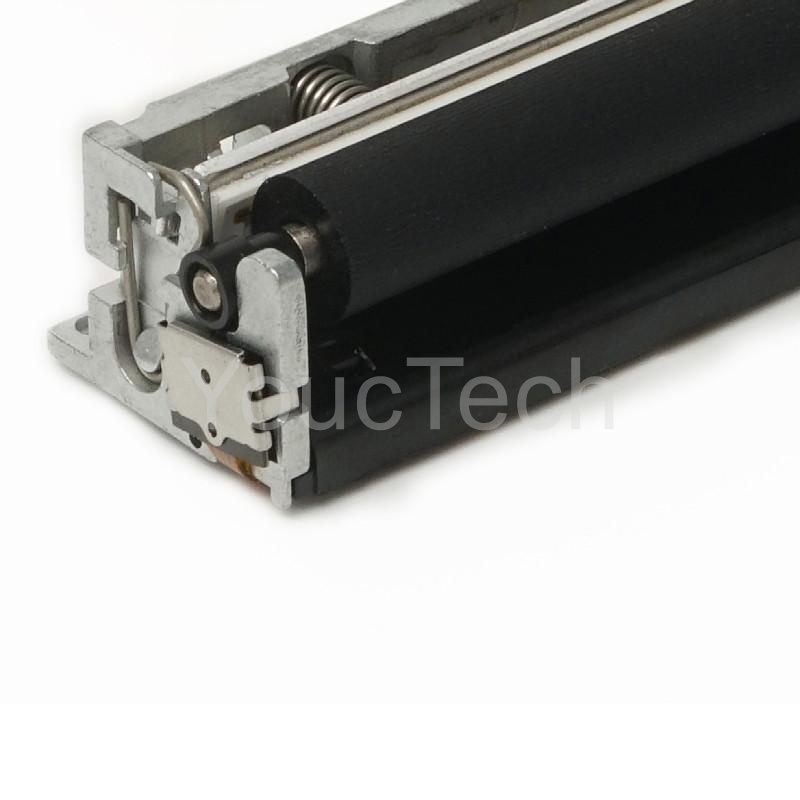

Platen release detection sensor
Printing speed up to 85mm/s
High resolution up to 8 dots/mm
High printing endurance up to 50km

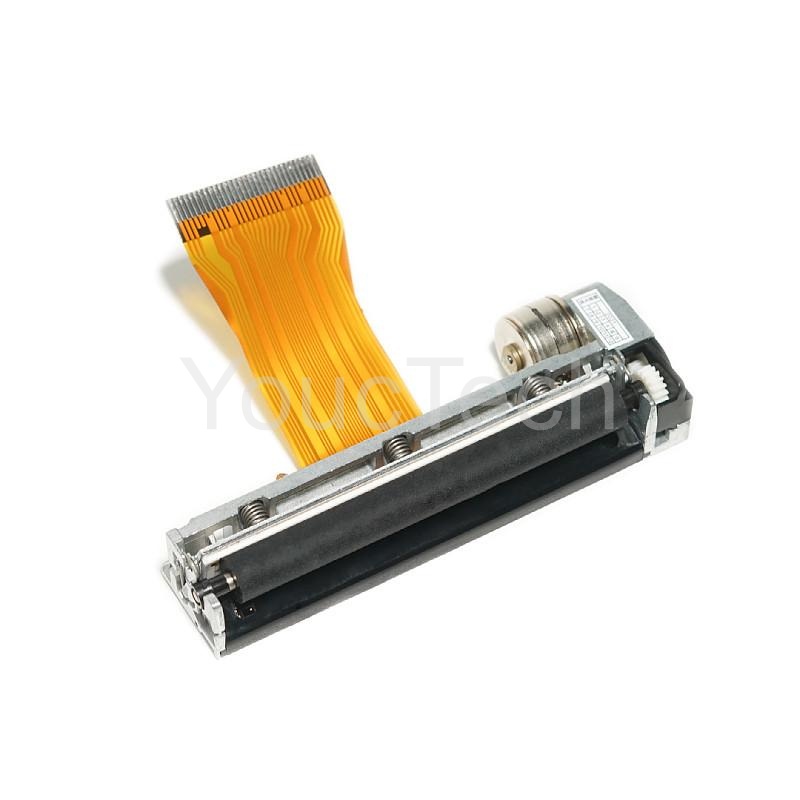

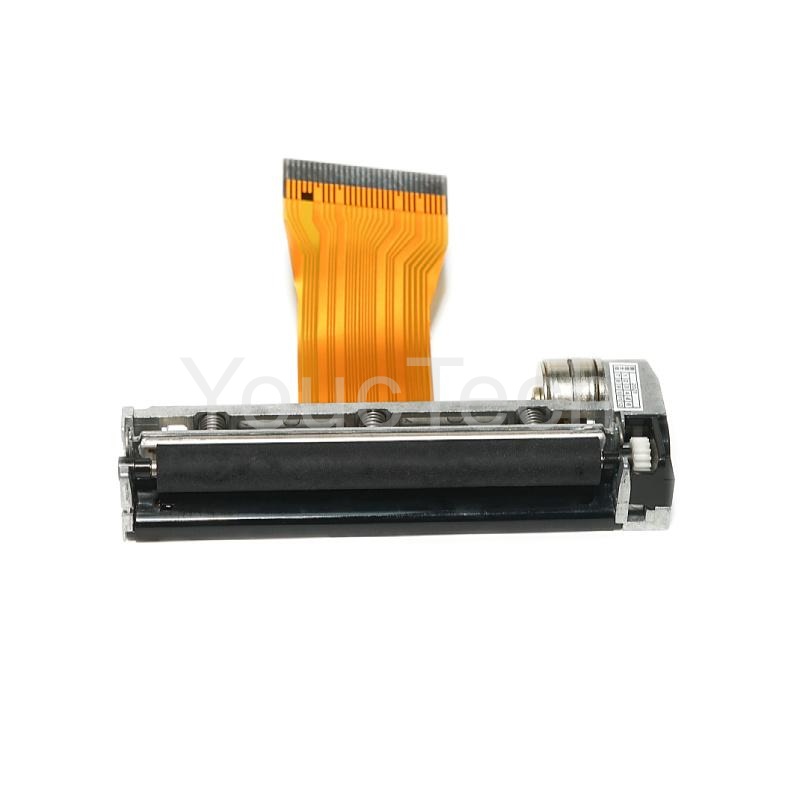

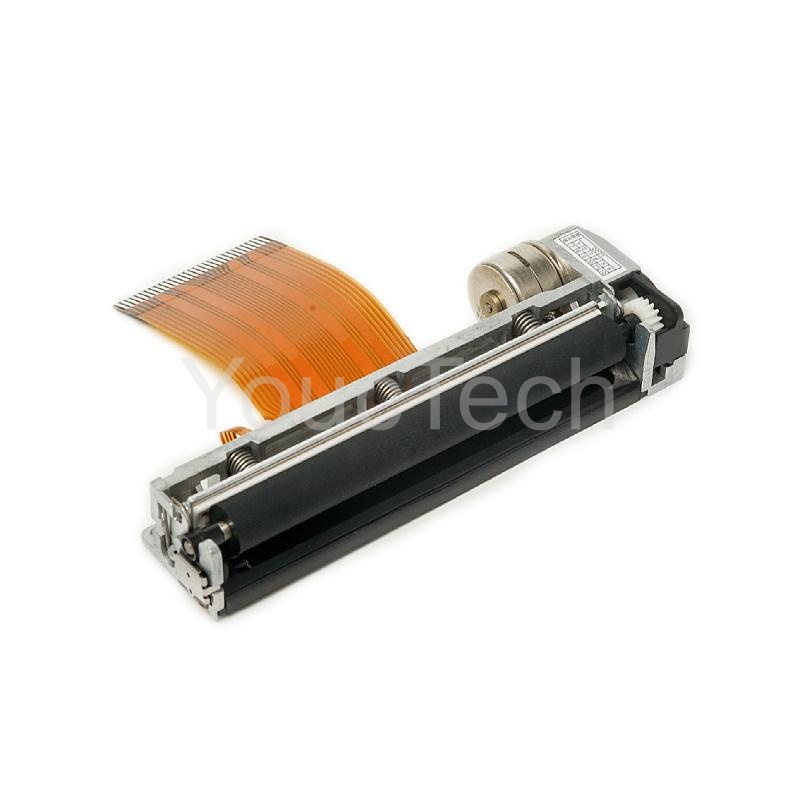

YC638-103 is a 3inch thermal printer mechanism compatible with FTP-638MCL103 80mm printer head.
Item NO.:
YC638-103Order(MOQ):
100Payment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
XiamenLead Time：
10~15 daysProduct Item: YC638-103 80mm thermal printer head FTP-638MCL103 thermal mechanism compatible
YC638-103 is compact design direct thermal printer mechanism, which is equivalent of FTP-638MCL103. This printer head is widely used in medical devices ( such as Brood test instrument, Urine test instrument) and portable label printing for various applications. It is a front open printer mechanism with latch function. YC638-103 comes with a 1 year warranty as standard.
Main Features:
Compact design and easy paper loading
80MM paper and 72mm print width
Low voltage 4.2~8.5 power supply
Fast print speed 80mm/s
Durable print life more than 50km
Our advantages:
A. Accuracy Product Quality

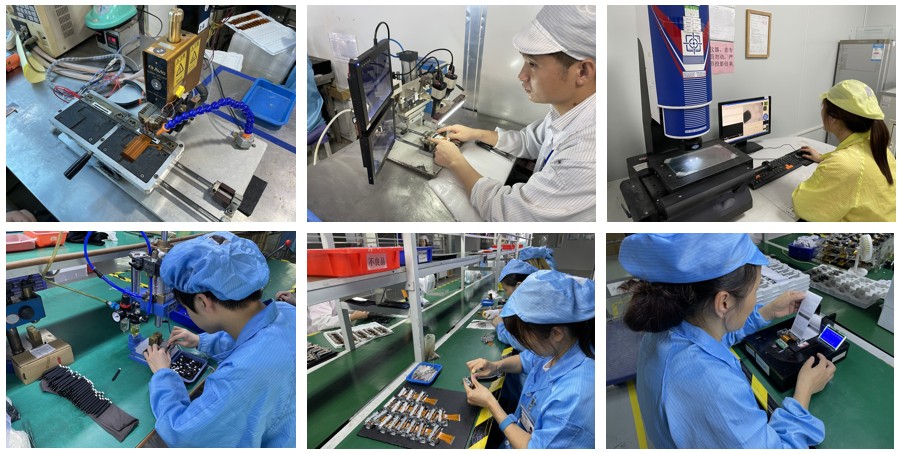

YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish a strict quality control system, from raw material purchase to printer assembly.
B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.
D. Fast delivery and Save customers' importing cost

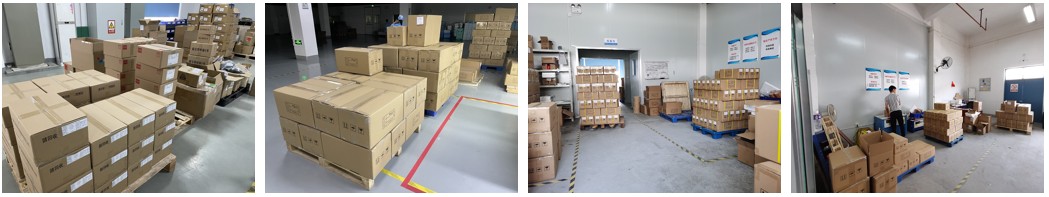

We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in 7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC638-103 |
|
Compatible brand |
Fujitsu FTP-638MCL103 |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
576 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
72 |
|
Paper width (mm) |
80 |
|
Max printing speed |
80mm/s |
|
Paper feed pitch (mm) |
0.0625 |
|
W*D*H (mm) |
92.3*33*15.2 |
|
Head temperature detection |
Via thermistor |
|
Out of paper detection |
Via photo interrupter |
|
Platen detection |
Via Mechanical switch |
|
Operation voltage (V) |
4.2~8.5 |
|
Logic voltage (V) |
3.0 ~5.25 |
|
Paper path |
Curved |
|
Average resistance |
176Ω |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥50km |
|
Operating temperature (°C) |
0～50 |
|
Operating humidity (RH) |
20％～85％ |
|
Storage temperature (°C) |
-25~70 |
|
Storage humidity (RH) |
5％～95％ |
Hand held terminals
EFT POS and Fiscal printers
Portable printers and terminals
Digital tachometers
Data terminal devices
Automotive and Taxi meters
Measuring instruments and analyses
