Optional USB bluetooth print support
Fast print speed 50~90mm/s
Durable battery life 260000mah
YCP-805 is 3inch mobile mini portable thermal printer for easy operation and widely used in various systems of PC Windows Ubuntu Android iOS etc.
Item NO.:
YCP-805Payment:
T/T, L/C, Paypal, Western UnionProduct Origin:
Xiamen, ChinaColor:
Black grey, blueShipping Port:
XiamenLead Time：
1~2 weeksPrint speed:
50-90mm/sVoltage:
12VPrint method:
thermal dot line printingProduct Item: 80mm Label Mobile Thermal Portable Printer with Bluetooth USB YCP-805
YCP-805 is a 80mm 3inch mobile portable thermal label printer for ticket and billing printing. With extra bluetooth connecting function, it is ideal for express logistics, retail, warehousing and traffic ticket printing solution.
Main features:
Compact size, light weight, durable performance
2600mAH, 7.4V rechargeable li-ion battery, charge quickly
Continuous work for 6 hours and 250km
90mm/s fast printing speed

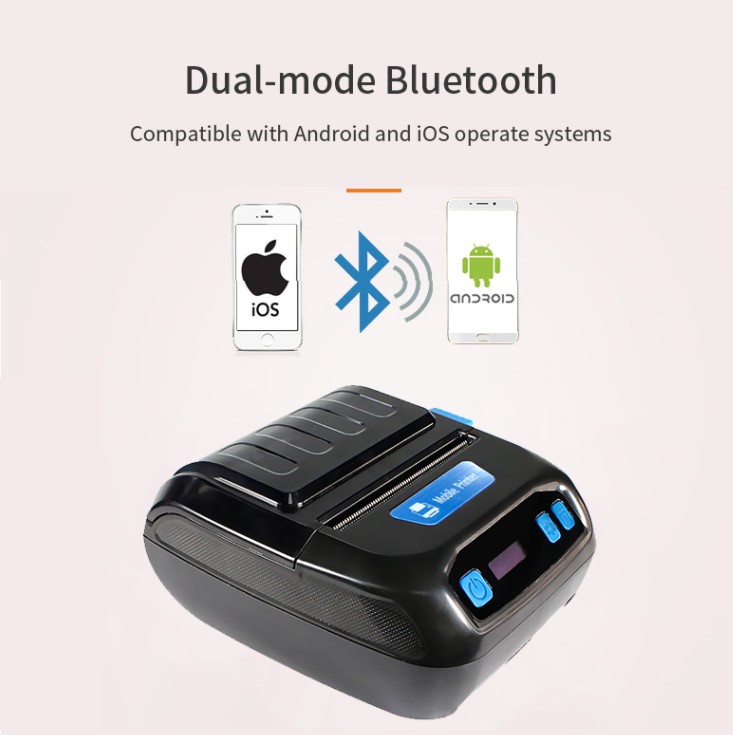

Standard connecting ports USB, bluetooth options
Various languages support, easily operated
For ticket billing receipt paper printing

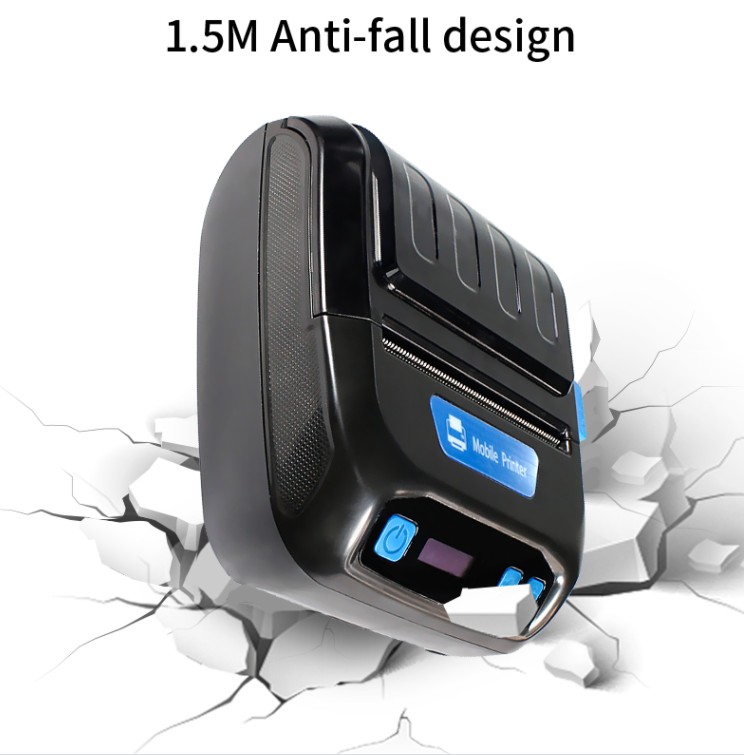

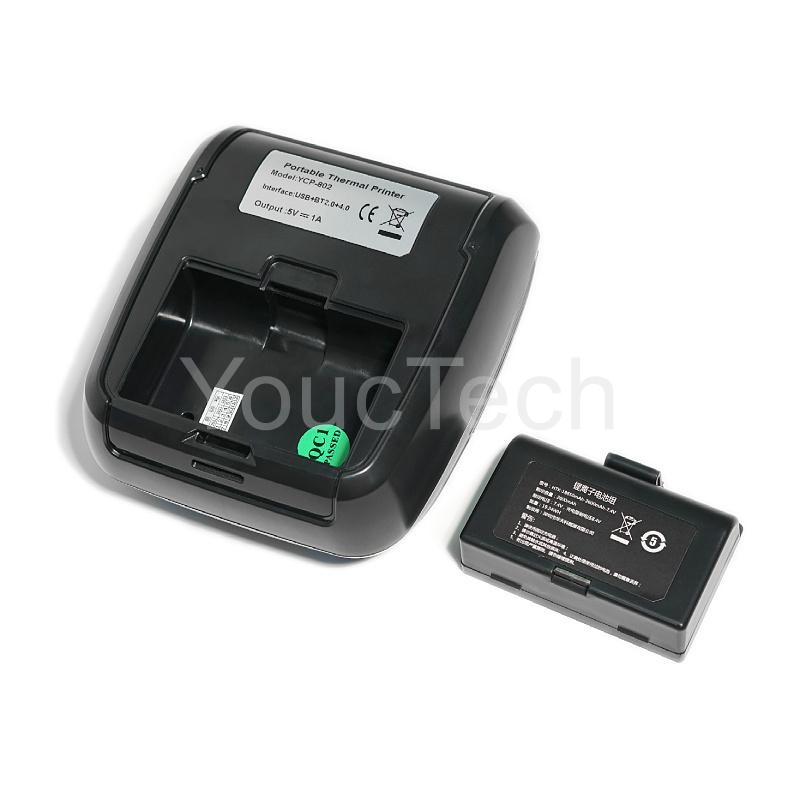

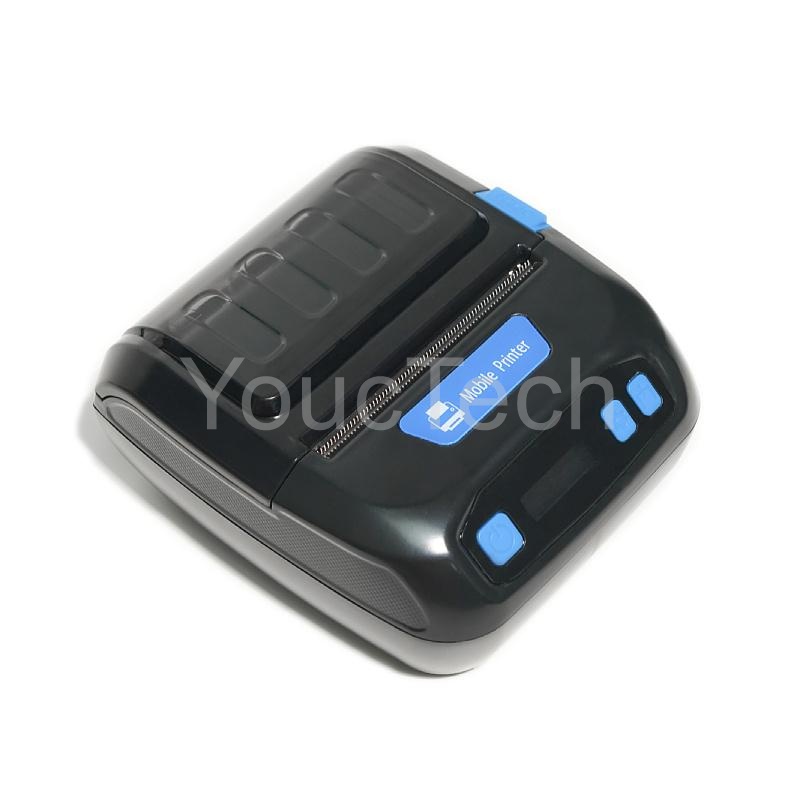

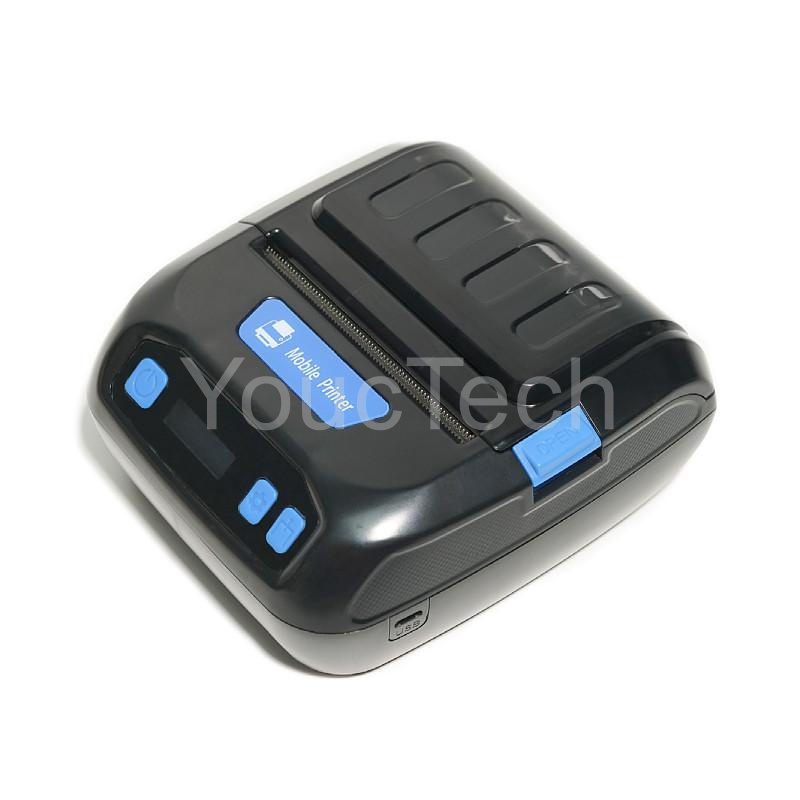

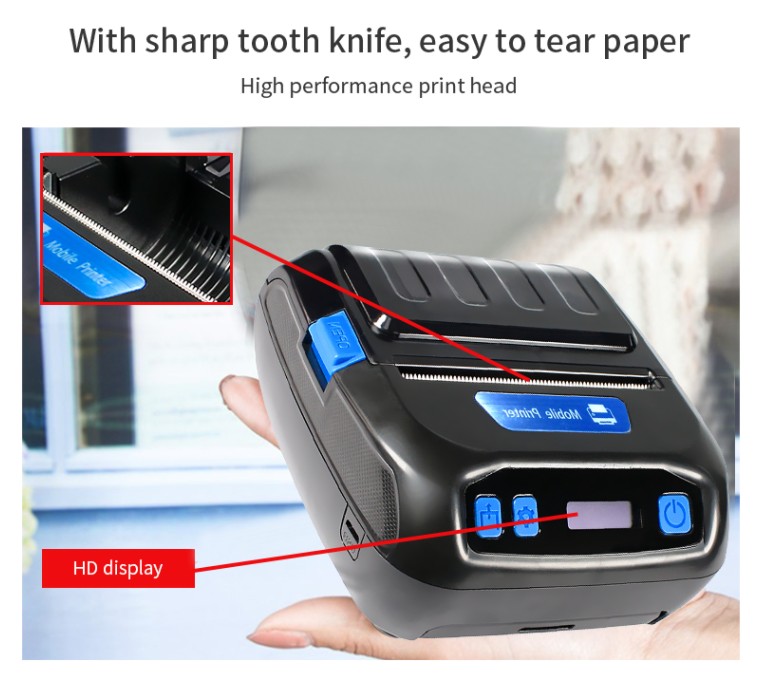

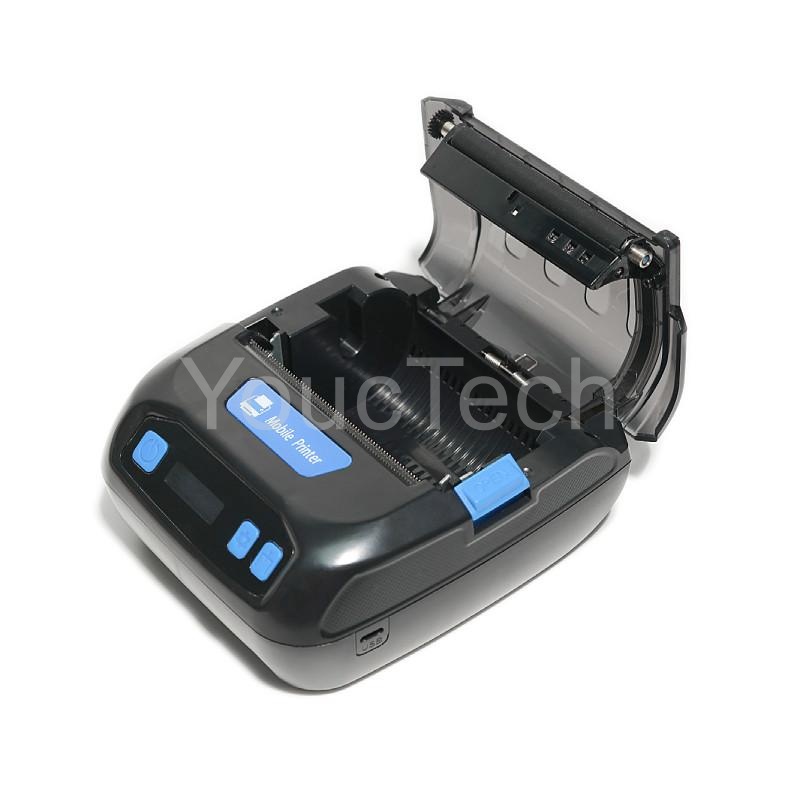

YCP-805 handheld thermal receipt printer images
|
Model |
YCP-805 |
|
|
Printing |
Method |
Thermal line printing |
|
Speed |
50~90mm/s |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
48mm (384 dots/line) |
|
|
Paper |
Type |
Thermal paper |
|
width |
58mm | |
|
Thickness |
0.06~0.08mm |
|
|
Roll diameter |
40mm | |
|
Reliability |
TPH | 50km |
|
Interface |
Standard |
BT2.0/4.0+USB |
|
Cutting type |
Manual |
Tear bar |
|
Character size |
ANK Character, Font A: 12*24 dots Font B: 9*17 dots Simplified/Traditional: 24*24 dots |
|
|
Barcode type |
UPC –A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODEBAR/CODE39/CODE93/CODE128/ITF, QR code |
|
|
Logo download |
Support logo，jpg download tool software |
|
|
Printing command |
ESC/POS command |
|
|
Driver available |
Windows 98/2000/2003/XP/Vista/Linux/7 |
|
|
Sensor |

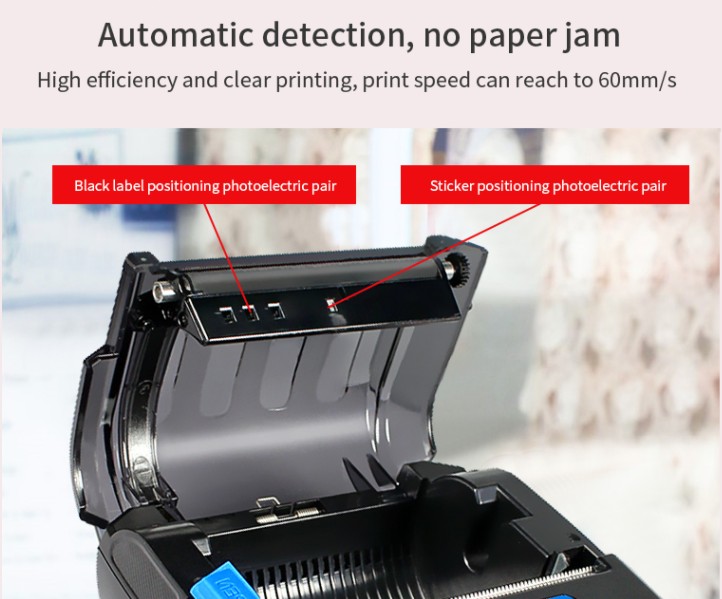

Paper End Sensor, Mark Sensor |
|
|
Power supply |
External 12V/2A power adapter |
|
|
Rechargeable Ni-NH 7.4V NiMh, 1600mAh |
||
|
Color |
Black, Blue |
|
|
Outline dimension |
110(L)*80(W)*40(H)mm |
|
|
Accessories |
Paper manual, interface cable, power cable, power plug, paper roll |
|
|
After-sales service |
12 months warranty |
|
Smart retail billing
Packing lot instrument
Traffic penalty ticket
Taximeter receipt printing
Medical analysis
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
