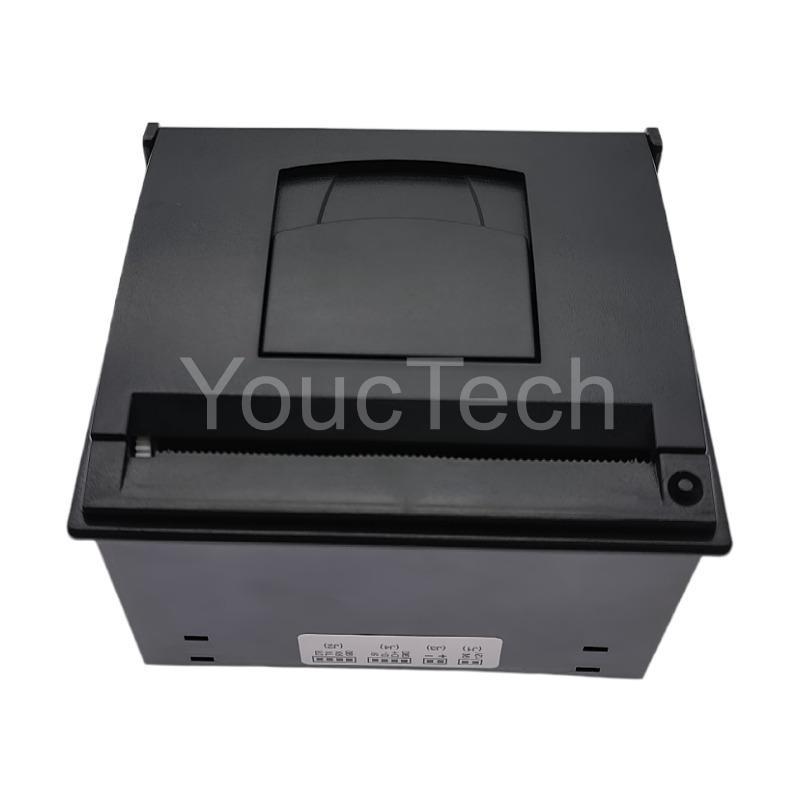

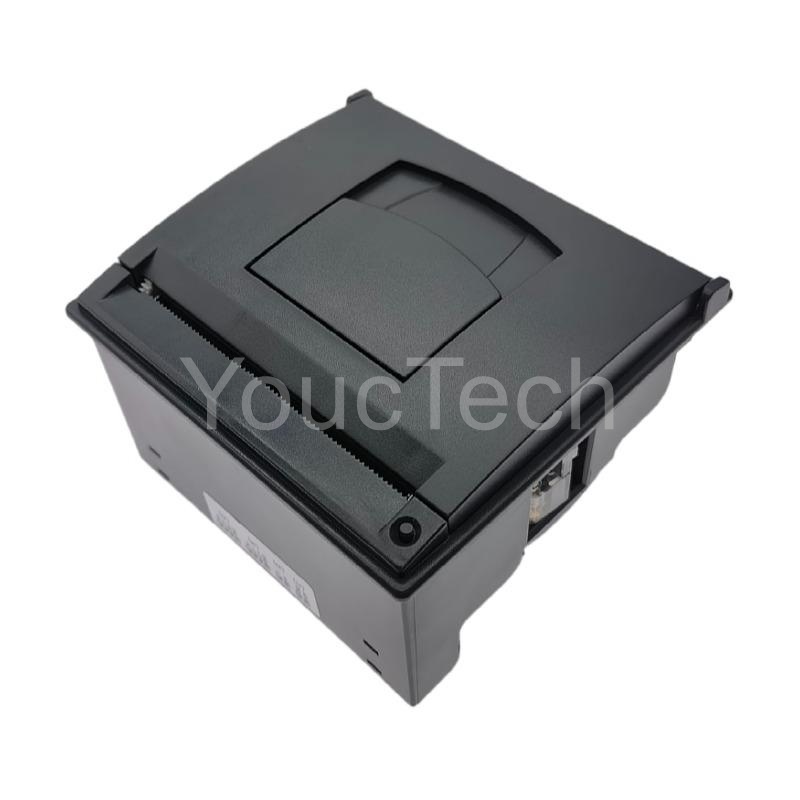

3inch thermal print module
Power supply 12V voltage

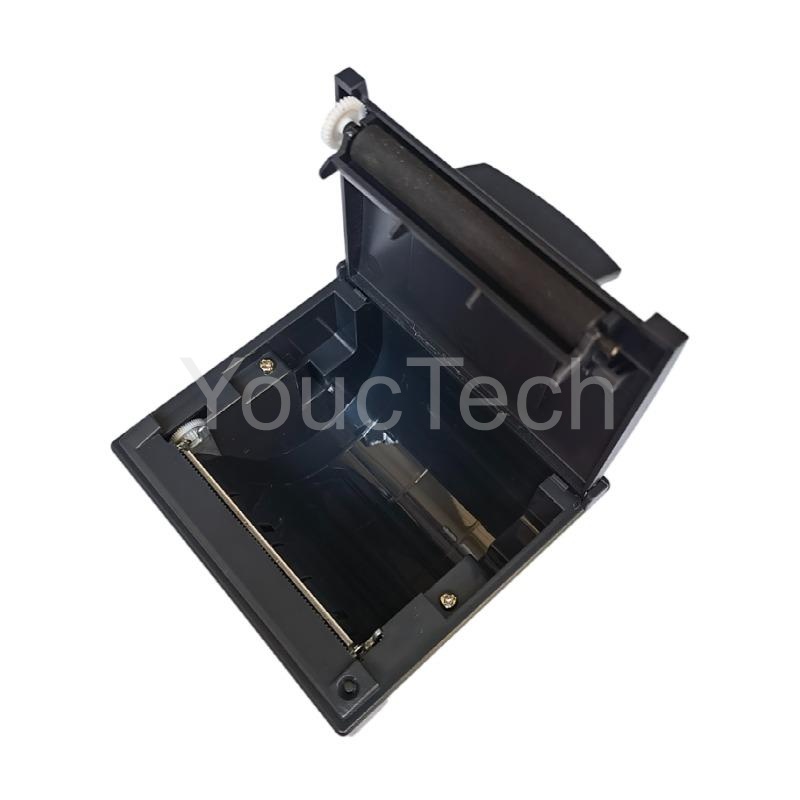

Delicate and easy paper loading
RS232 and USB interfaces supported
Features a tear bar for paper cutting
Door open and end of paper sensor

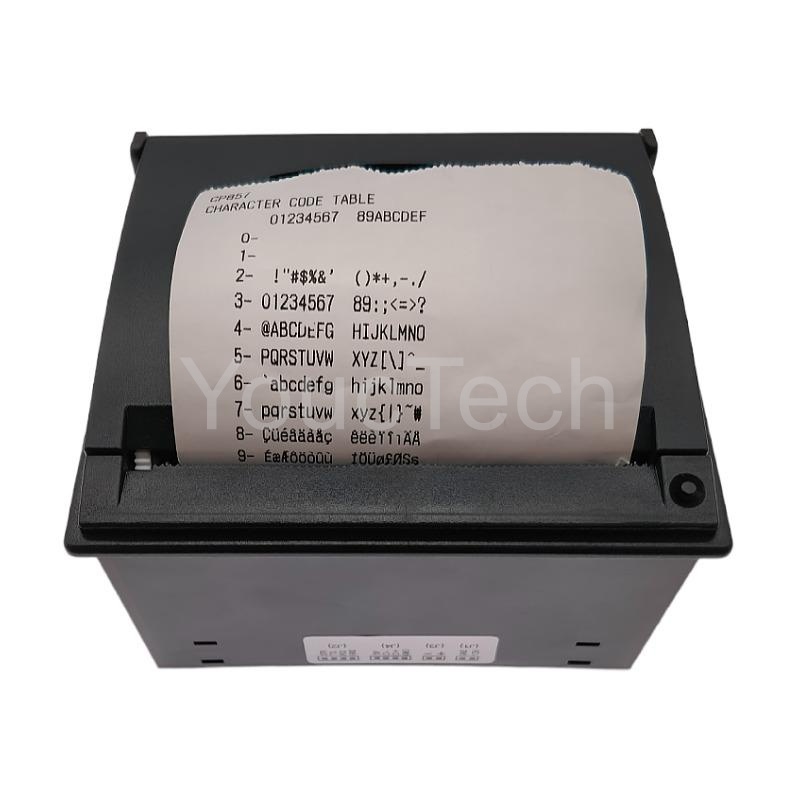

Wide ranges of character fonts and languages printing choices
Item NO.:
YCP-A31Payment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaColor:
BlackShipping Port:
XiamenLead Time：
2~3weeksPrint speed:
80mm/sVoltage:
12VPrint method:
thermal dot line printingProduct Item: 80mm embedded thermal print module serial usb interface
YCP-A31 is a 3inches, 12V, dedicated Thermal Print Module with an integrated paper roll housing and control board using serial and usb communication interfaces.
Main features:
Single power supply 12V
Easy printing fonts updating
Windows driver available
communication ports RS232, USB and cash control
Full control over printing quality and speed
Overall languages character printing support
High grade of integration and Easy Door Opening System
Software programmable consumption with print speed up to 80mm/s
Integrated keypad with paper feed and ON-OFFLline push buttons and LED

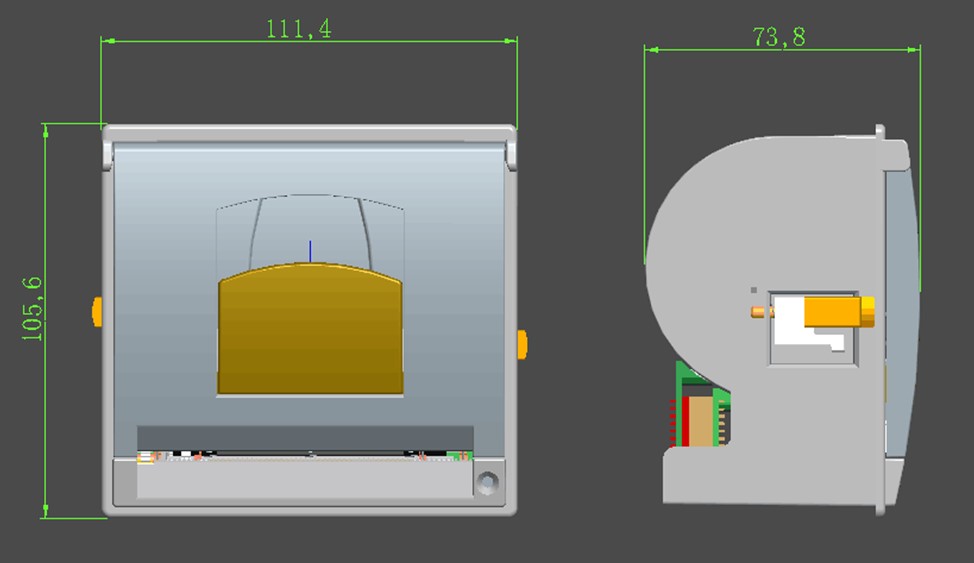

YCP-A31 layout dimension
|
Model |
YCP-A31 |
|
|
Printing |
Method |
Direct thermal line printing |
|
Number of dots/line |
576 |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
72mm |
|
|
Max printing speed |
80mm/s |
|
|
Paper |
Type |
Thermal receipt paper |
|
width |
80mm | |
|
Roll diameter |
Max 60mm |
|
| Cutting type |
Manual tear bar |
|
|
Detection |
Head temperature detection | Via thermistor |
|
Out of paper detection |
Via photo interrupter |
|
|
Power supply |
Driven voltage |
12V |
|
Emulation |
ESC/POS command |
|
|
Character |
Character set |
GBK, ASCII character, Bar code, Support for different density point bitmap and download the bitmap print, QR code. |
|
Font |
(ASCII) 9X17, 12×24,24x24(GBK) |
|
|
Reliability |
MCBF |
5 million lines |
|
Interfaces |
Serial (RS232,TTL),USB |
|
|
Physical |
Outline dimension (L*W*H) |
105.5*111.4*73.8mm |
|
Installation dimension (L*W) |
99.6*105.5mm |
|
|
Environment |
Operating temperature (°C) |
5～50 |
|
Operating humidity (RH) |
10％～80％ |
|
|
Storage temperature (°C) |
-20~60 |
|
|
Storage humidity (RH) |
10％～90％ |
|
