58MM Serial RS232 TTL thermal control board

Low power supply 5V-9V

Optional interfaces RS232 TTL

Reliable print speed 50-90mm/s

Print range 58mm and 80mm paper width

Thermal mechanism used YC628-101 YC628-103

YCB628A is an embedding control thermal board for 2 inch and 3inch printing application.

Item NO.:
YCB628A
Payment:
T/T, Paypal, Western Union
Product Origin:
Xiamen, China
Shipping Port:
Xiamen
Lead Time：
1~2 weeks
Print speed:
50-90mm/s
Voltage:
5-9V
Print method:
thermal dot line printing

PRODUCT OVERVIEW
PRODUCT SPECS
APPLICATION

Product Item: 58mm reliable print quality thermal control board with serial RS232 TTL interfaces

YCB628A is a ultra embedding thermal control PCB that supports 58mm and 80mm thermal printer printing. It matches to our thermal mechanism YC628-101 (FTP-628MCL101), YC628-103 (FTP-628MCL103) and YC638-101 (FTP-638MCL101) YC638-103 (FTP-638MCL103). This thermal control card supports optional interfaces RS232 TTL.

Main features:

Compact size mini layout for embedding
Standard print interface serial in RS232 TTL

Low power voltage 5-9V only

Durable print life 50km

50-90mm/s various printing speed at different voltage
Optional connecting ports USB, bluetooth
Various languages support for easy print operation

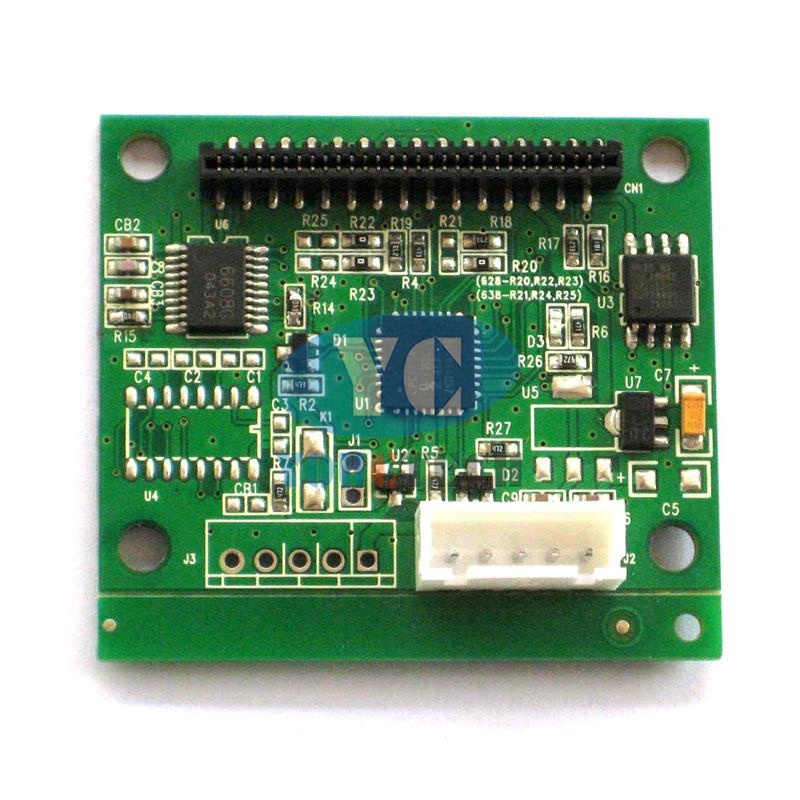

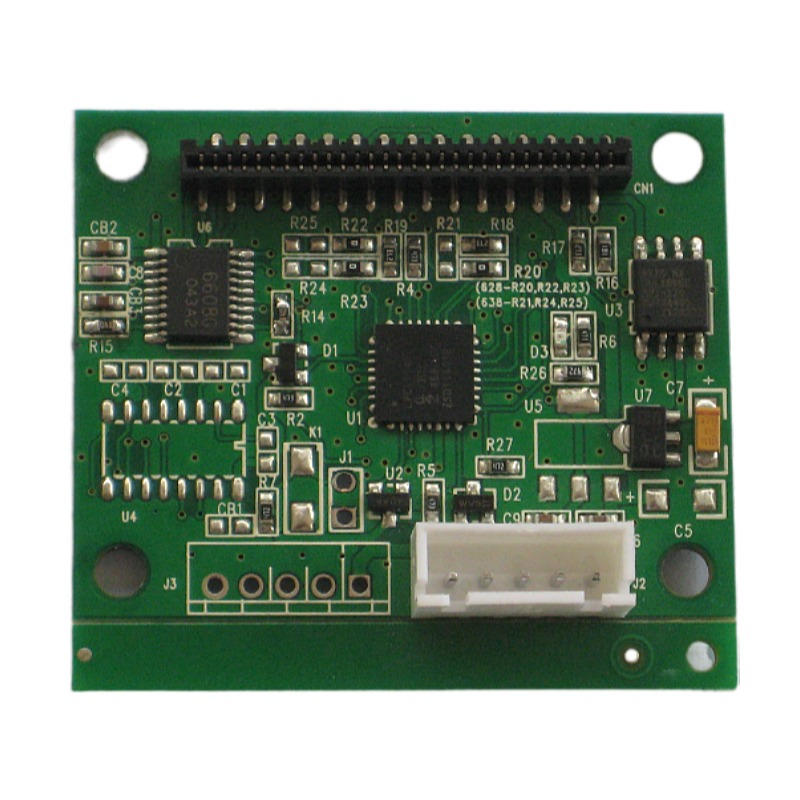

YCB628A thermal print board images

Thermal printer control board

Item	YCB628A
Printing method	thermal dot line printing
Printing width	48mm
Paper width	57.5mm
Resolution	203DPI (8dots/mm)
Max printing speed	90mm/s
Optional baudrate	9600, 19200, 38400, 57600, 115200
Barcode supported	I25,UPC-A,UPC-E,EAN-8, EAN-13,Codebar,Code39,Code93,Code128,Code11,MSI
Font	ASCII(12x24)
Graphic printing	Direct bitmap printing
Head temperature detection	Thermistor
Out of paper detection	photo interrupter
Communication interface	RS232, TTL
Power supply	5.0V~9.0V
Abrasion resistance	50km
Operating temperature	5～45°C
Operating humidity	20％～90％RH (40℃)
Storage temperature	-40～60°C
Storage humidity	20％～95％RH (40℃)
