3inch thermal printer mechanism
Seiko LTPF347F-C576-E compatible
Fast printing speed max 220mm/s
High resolution up to 8 dots/mm
High printing endurance up to 150km
Auto cutter solution for easy paper takeout
Platen latch function for easy releasing
Item NO.:
YC347Payment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
Xiamen, Shanghai, Shenzhen, Ningbo etcLead Time：

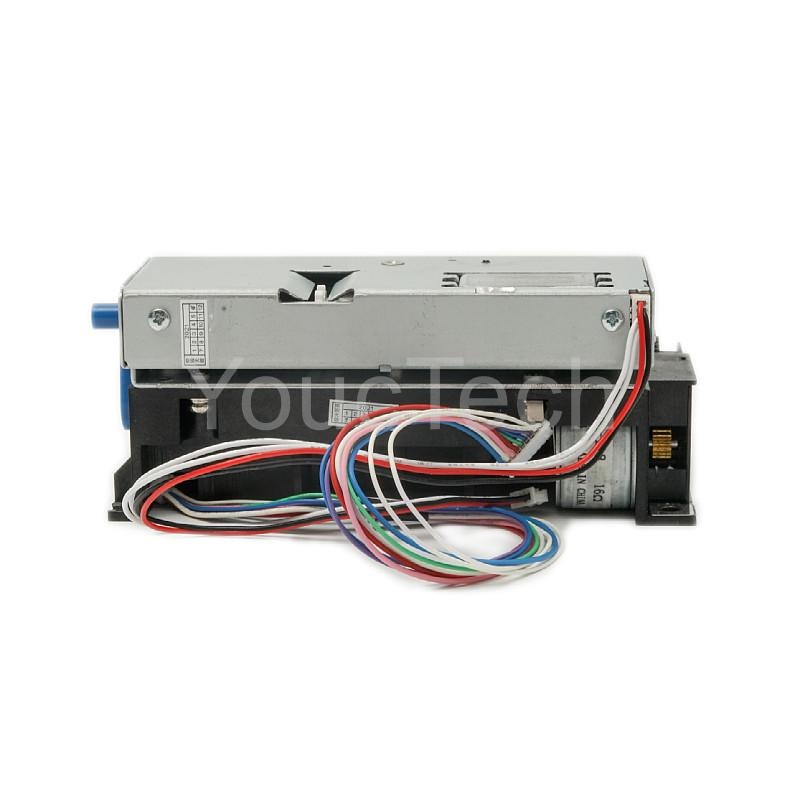

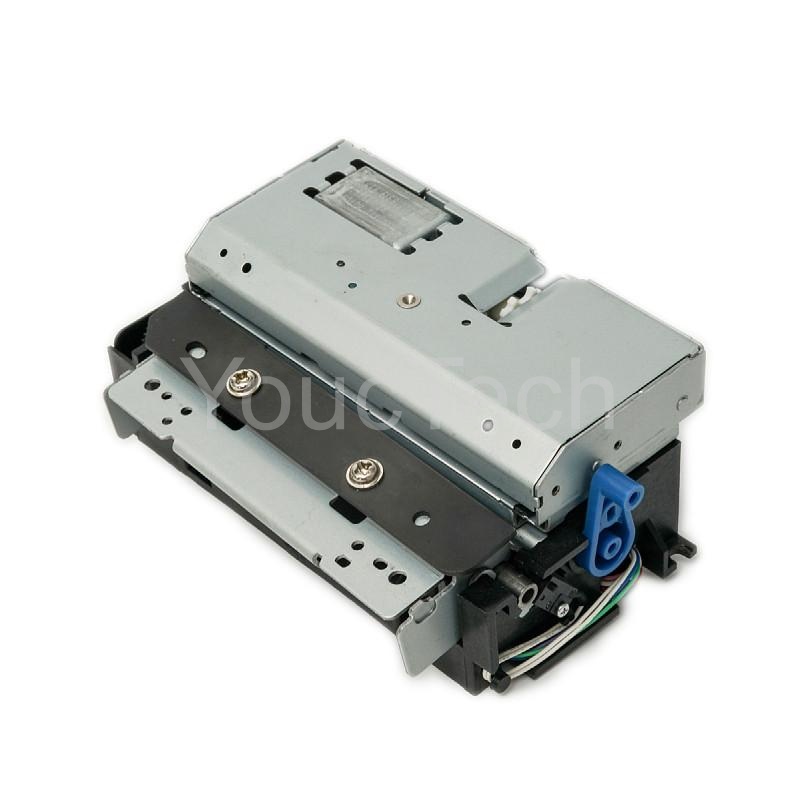

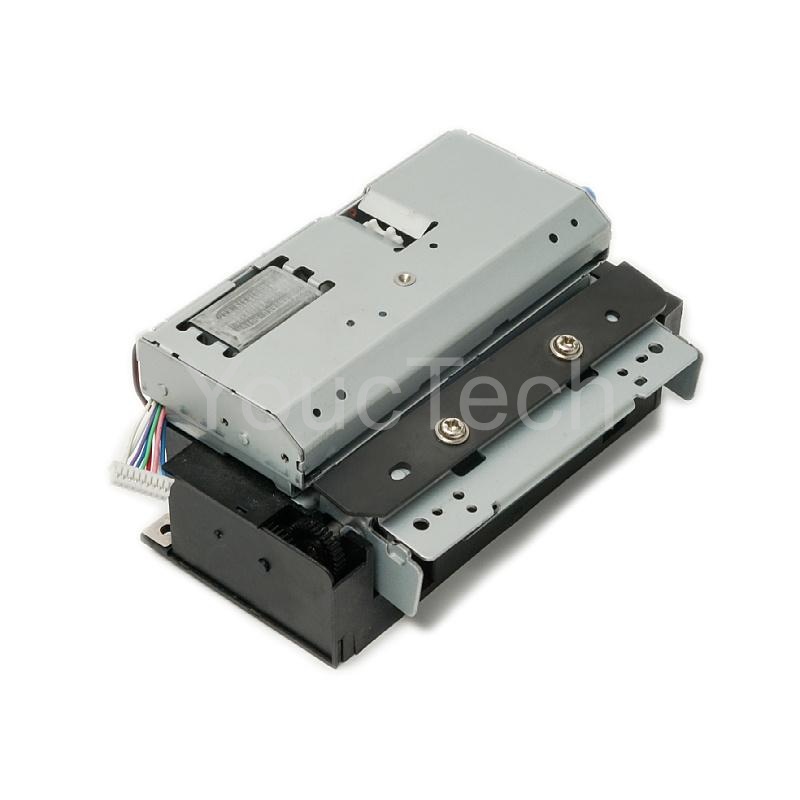

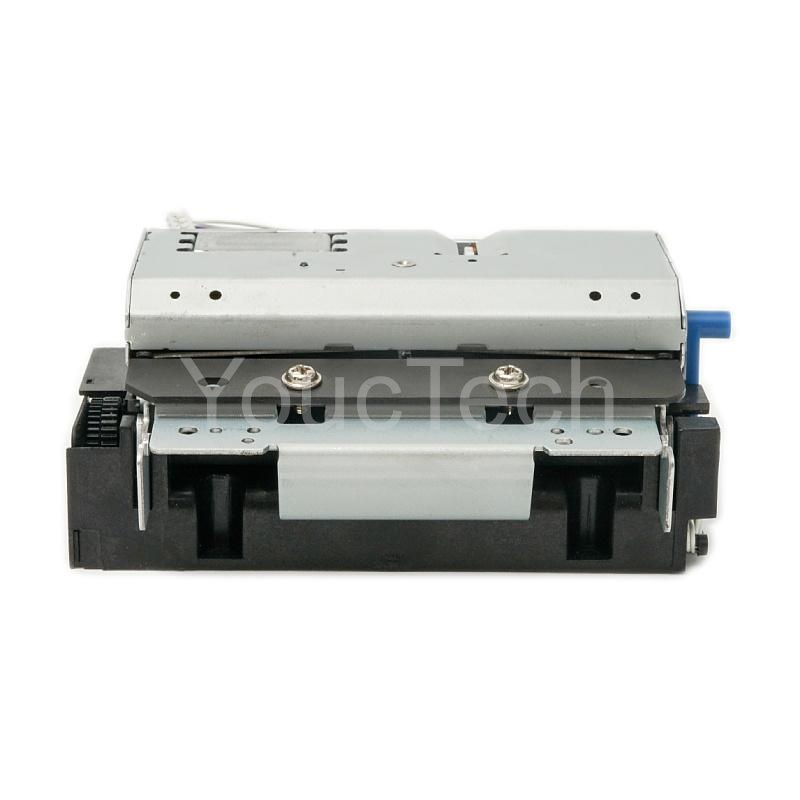

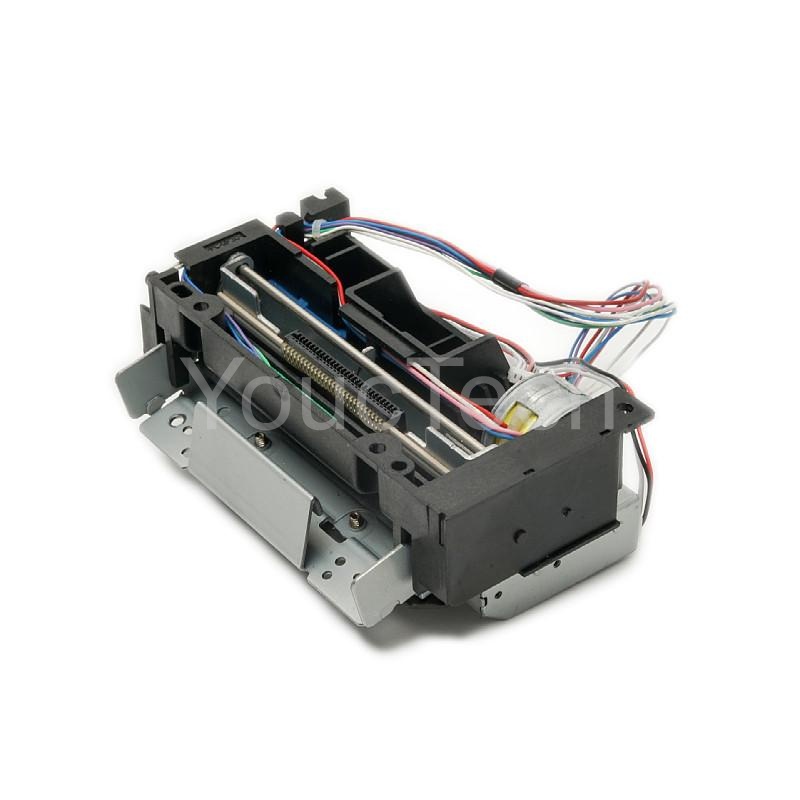

10~15 daysYC347 3inch 80mm thermal printer mechanism head with auto cutter
YC347 is wide paper printing thermal printer mechanism features in auto paper cutting and extremely fast speed print. It is compatible with Seiko LTPF347F-C576-E printer head, which is applicable to ECR, KIOSK system, measuring instruments, receipt printer and medical equipment etc.
Main Features:
Very high print speed 220mm/s
Heavy print life more than 150km
Wide voltage 24V power supply
Autocutter for full and partical paper cut
Side latch function easily to open platen
Durable and big rotating gears for quality printing
Our advantages:
A. Accuracy Product Quality

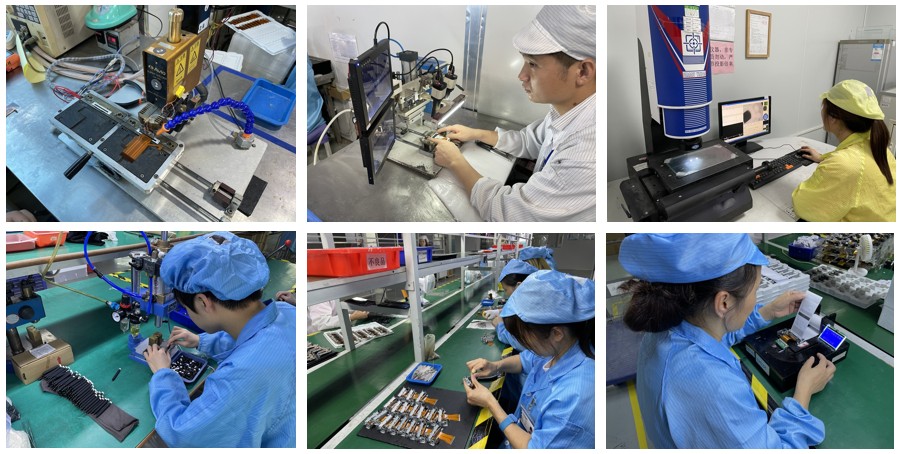

YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish
a strict quality control system, from raw material purchase to printer assembly.
B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most
prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.
D. Fast delivery and Save customers' importing cost

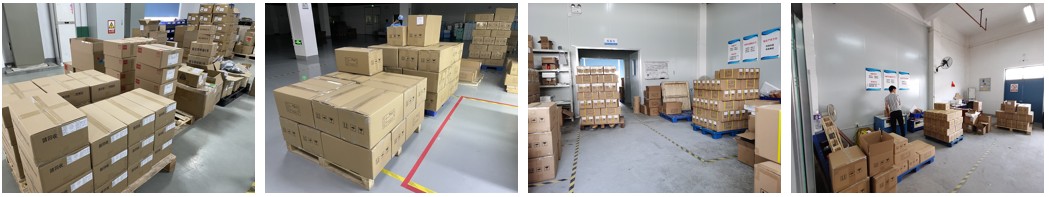

We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in
7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC347 |
|
Compatible brand |
Seiko LTPF347F-C576-E |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
576 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
72 |
|
Paper width (mm) |
80±0.2 |
|
Max printing speed |
220mm/s |
|
Paper feed pitch (mm) |
0.125 |
|
W*D*H (mm) |
110.2*54*25.8 |
|
Head temperature detection |
Via thermistor |
|
Platen position detection |
Via Mechanical switch |
|
Out of paper detection |
Via photo interrupter |
|
Cutter home position detection |
Via transmissive type photo interrupter |
|
Head working voltage (V) |
24 |
|
Logic voltage (V) |
3.13~5.25 |
|
Paper feed voltage (V) |
24 |
|
Cutter voltage (V) |
24 |
|
Paper path |
Curved |
|
Cutting method |
Auto cut, Full/partial cut (tab left at the center) |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥100km |
|
Paper cut resistance |
≥500,000 cuts |
|
Operating temperature (°C) |
0～50 |
|
Operating humidity (RH) |
20％～85％ |
|
Storage temperature (°C) |
-25~70 |
|
Storage humidity (RH) |
5％～90％ |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
