Low power supply 5-9V and 12V options
Available interfaces serial RS232 TTL and mini USB
Wide ranges of character fonts and languages printing choices

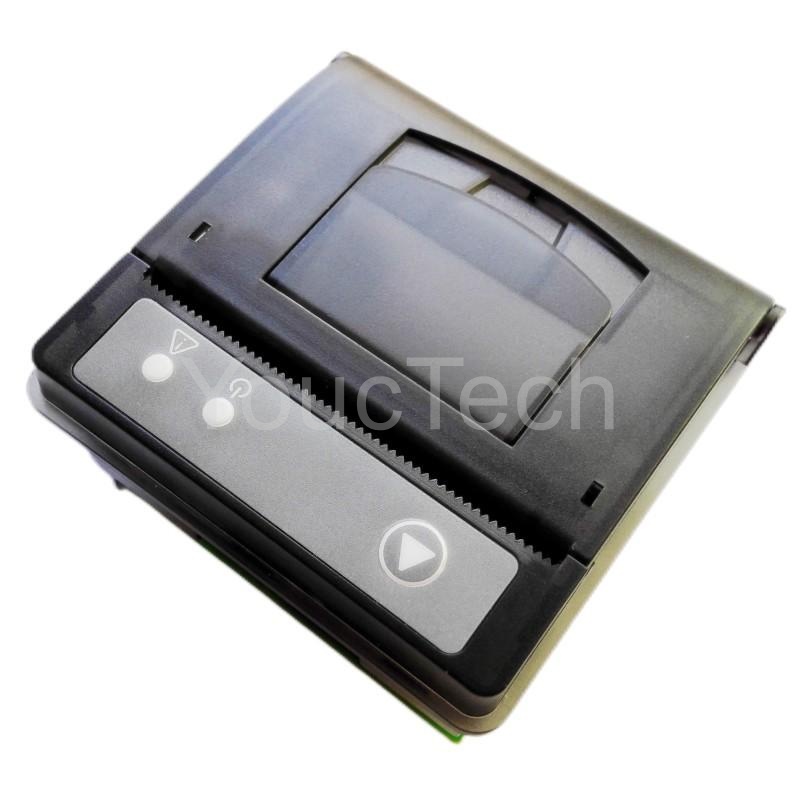

YCP-2A has external keypad solution. It is 58mm panel thermal printer module for embedding solution applies to weighing scale, ticket dispenser and gas pump instruments etc.
Item NO.:
YCP-2APayment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaColor:
Transparent blackShipping Port:
XiamenLead Time：
2~3weeksPrint speed:
50-90mm/sVoltage:
12VPrint method:
thermal dot line printingProduct Item: 2 inch panel embedded thermal printing module serial usb interface

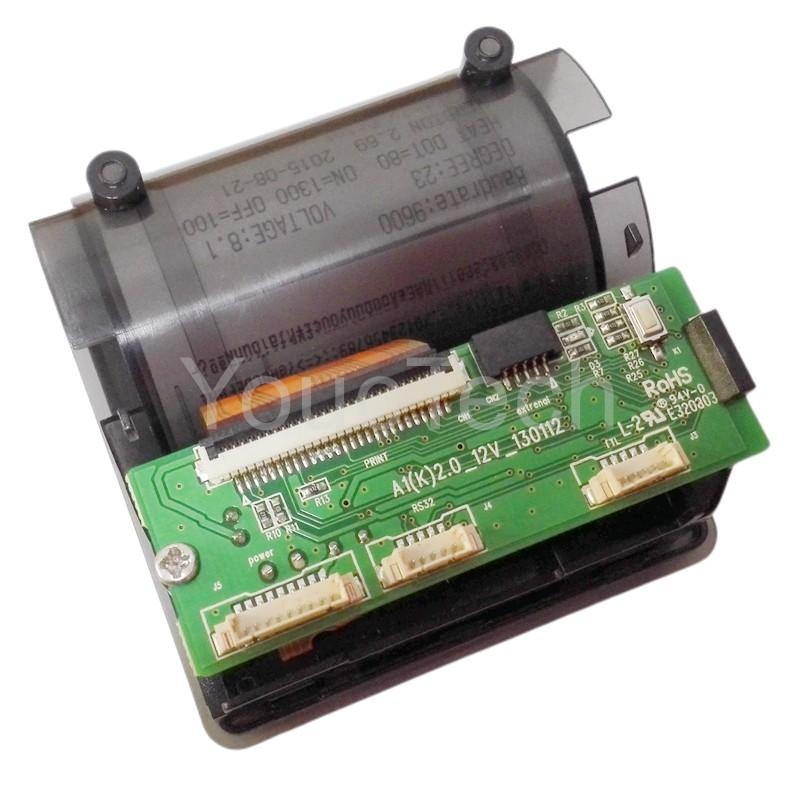

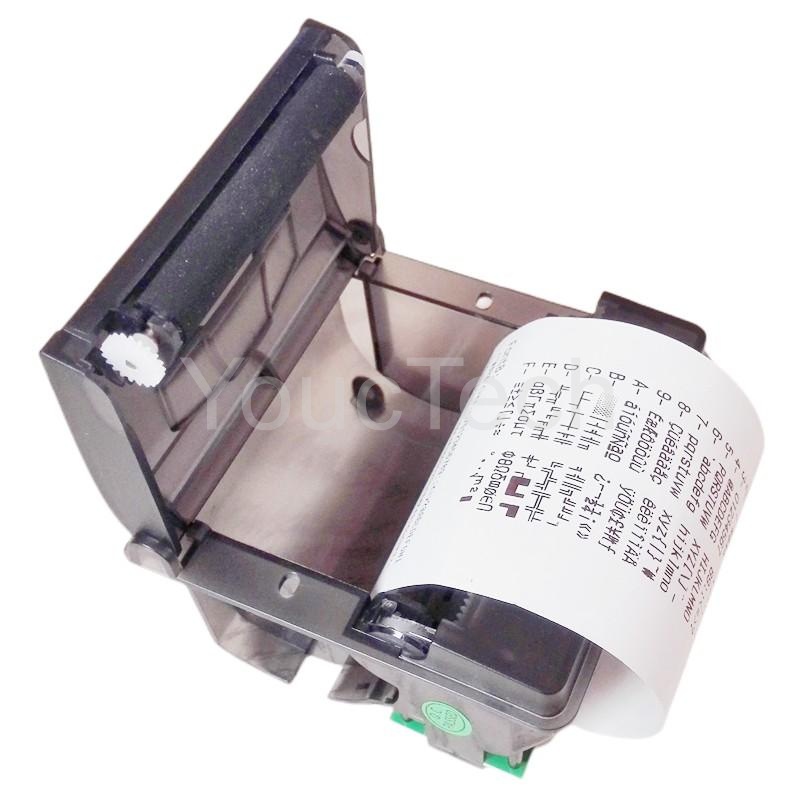

YCP-2A is a 2 inches, 5V, Easy Loading Printing Module with an integrated control board using serial and usb communication protocols. This module consists of a set of mechanical and electronic parts. These parts have been designed to have a high grade of integration and to perform many functions.
Main features:
Single power supply 12V
3 communication ports optional RS232, TTL, USB
Easy printing fonts updating
Windows driver available
Various barcode printing support
Full control over printing quality and speed
Overall languages character printing support

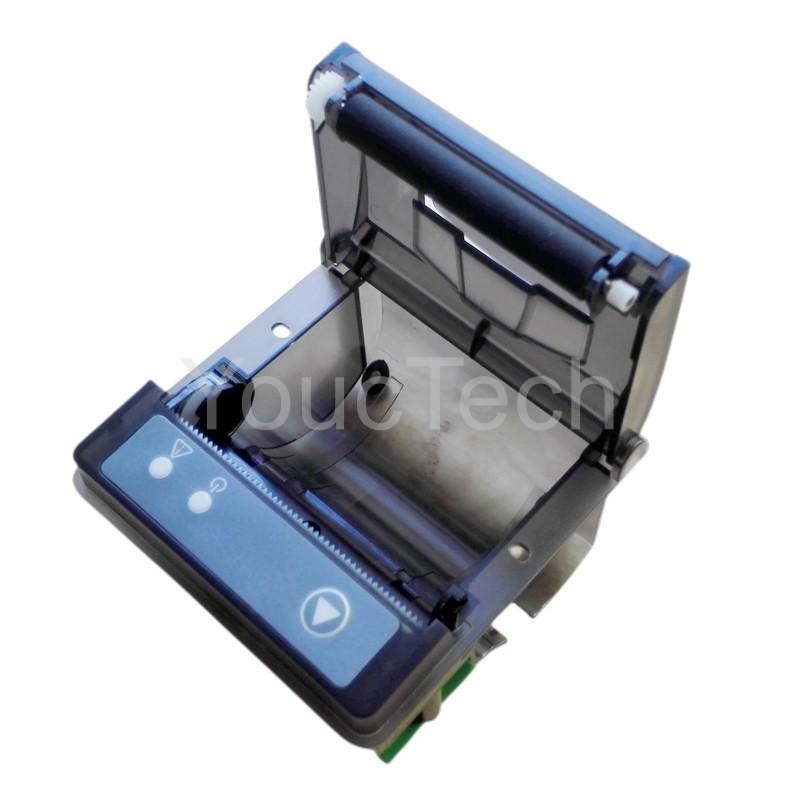

Integrated keypad with paper feed and ON-OFFLline push buttons and LED

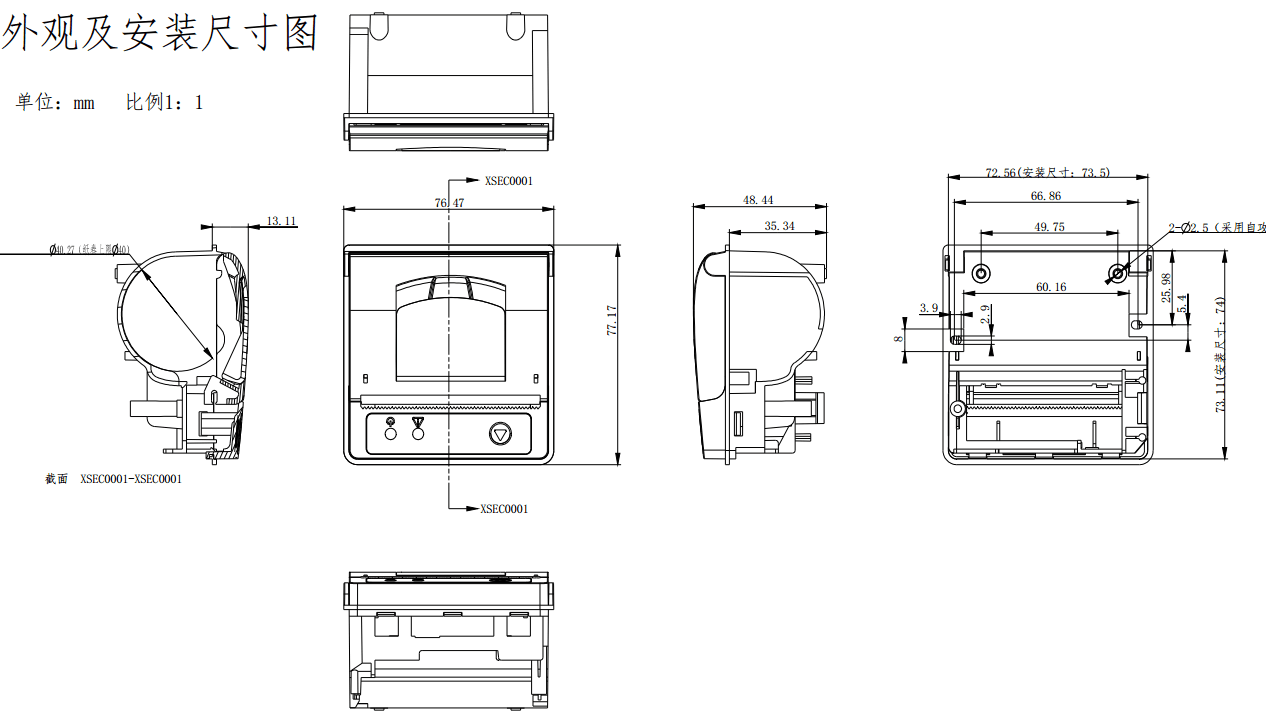

YCP-2A layout dimension
|
Model |
YCP-2A |
|
|
Printing |
Method |
Direct thermal line printing |
|
Number of dots/line |
384 |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
48mm |
|
|
Max printing speed |
50~80mm/s |
|
|
Paper |
Type |
Thermal receipt paper |
|
width |
58mm | |
|
Roll diameter |
Max 40mm |
|
| Cutting type |
Manual tear bar |
|
|
Detection |
Head temperature detection | Via thermistor |
|
Out of paper detection |
Via photo interrupter |
|
|
Power supply |
Driven voltage |
DC5.0V~9.0V, 15W/DC 5V, 3A |
|
Emulation |
ESC/POS command |
|
|
Character |
Character set |
GBK, ASCII character, Bar code, Support for different density point bitmap and download the bitmap print, QR code. |
|
Font |
9X17(ASCII),24x24(GBK) |
|
|
Reliability |
MCBF |
5 million lines |
|
Interfaces |
Serial (RS232,TTL),USB |
|
|
Physical |
Outline dimension (W*D*H) |
76.8*77.4*43.5mm |
|
Installation dimension (W*H) |
73*73mm |
|
|
Inlaid depth |
34.5mm |
|
|
Environment |
Operating temperature (°C) |
5～50 |
|
Operating humidity (RH) |
10％～80％ |
|
|
Storage temperature (°C) |
-20~60 |
|
|
Storage humidity (RH) |
10％～90％ |
|

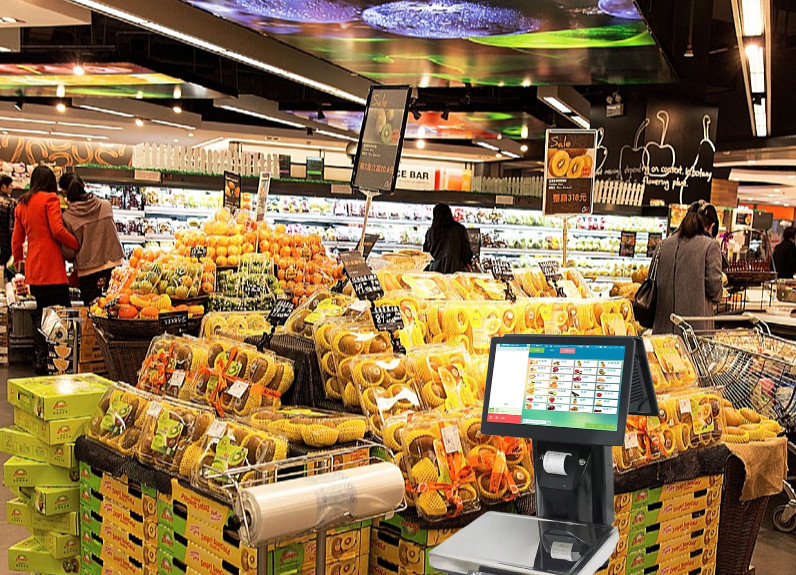

Weighing scale
Oil dispenser
