Available interfaces serial RS232 TTL and mini USB
Low power supply 5-9V and 12V options
Wide ranges of character fonts and languages printing choices
YCP-2 is a 2 inch thermal panel printer module for embedding solution applies to weighing scale, ticket dispenser and gas pump instruments etc.
Item NO.:
YCP-2Product Origin:
Xiamen, ChinaColor:
Transparent blackShipping Port:
XiamenPrint speed:
50-90mm/sVoltage:
5-9V, 12VPrint method:
thermal dot line printingProduct Item: 58mm thermal panel print module serial usb interface
YCP-2 is a 58mm 2 inch panel thermal printer module for billing ticket receipt print that is suitable to embedding printing solutions
Main features:
Easy operation, durable performance
Continuous work for 6 hours and 150km print life
50-90mm/s fast printing speed
Standard connecting ports USB, bluetooth options
Various languages support, easily operated

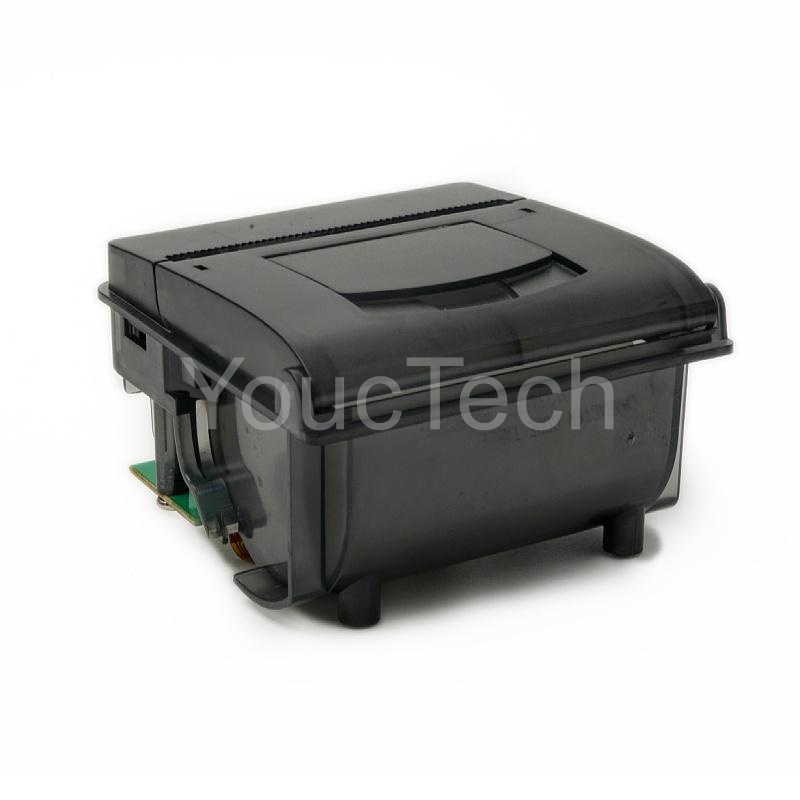

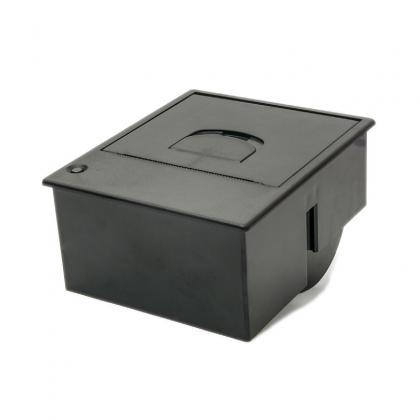

YCP-2 thermal printer module images
Overall description of printer parts
|
Model |
YCP-2 |
|
|
Printing |
Method |
Direct thermal line printing |
|
Number of dots/line |
384 |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
48mm |
|
|
Max printing speed |
50~80mm/s |
|
|
Paper |
Type |
Thermal receipt paper |
|
width |
58mm | |
|
Roll diameter |
Max 40mm |
|
| Cutting type |
Manual tear bar |
|
|
Detection |
Head temperature detection | Via thermistor |
|
Out of paper detection |
Via photo interrupter |
|
|
Power supply |
Driven voltage |
DC5.0V~9.0V, 15W/DC 5V, 3A |
|
Emulation |
ESC/POS command |
|
|
Character |
Character set |
GBK, ASCII character, Bar code, Support for different density point bitmap and download the bitmap print, QR code. |
|
Font |
9X17(ASCII),24x24(GBK) |
|
|
Reliability |
MCBF |
5 million lines |
|
Interfaces |
Serial (RS232,TTL),USB |
|
|
Physical |
Outline dimension (W*D*H) |
76.8*77.4*43.5mm |
|
Installation dimension (W*H) |
73*73mm |
|
|
Inlaid depth |
34.5mm |
|
|
Environment |
Operating temperature (°C) |
5～50 |
|
Operating humidity (RH) |
10％～80％ |
|
|
Storage temperature (°C) |
-20~60 |
|
|
Storage humidity (RH) |
10％～90％ |
|

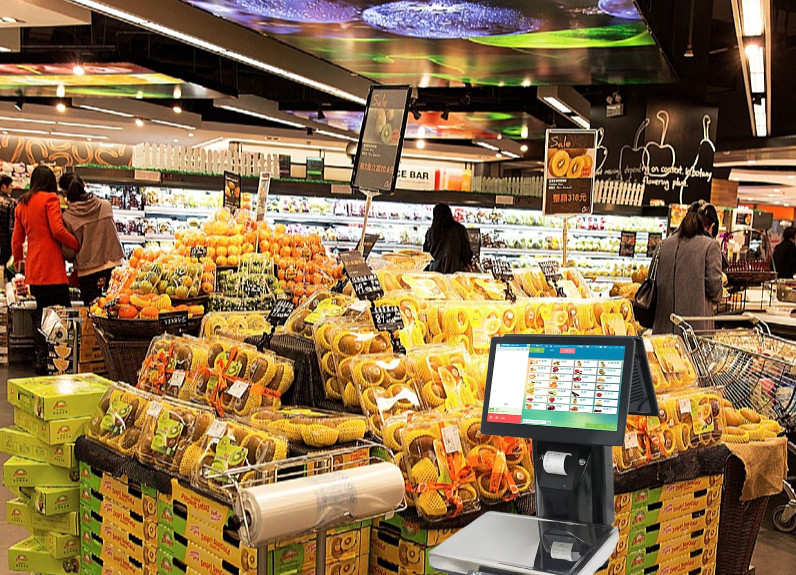

Weighing scale
Oil dispenser
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories
Low power supply 5-9V and 12V options Available interfaces serial RS232 TTL and mini USB Wide ranges of character fonts and languages printing choices YCP-2A has external keypad solution. It is 58mm panel thermal printer module for embedding solution applies to weighing scale, ticket dispenser and gas pump instruments etc.
2INCH thermal printer module Smallest embedded thermal printer Low power supply 5-9V and 12V options Available interfaces serial RS232 TTL USB Easy paper loading for direct thermal printing Wide ranges of character fonts and languages printing choices
Available interfaces serial RS232 TTL and mini USB Low power supply 5-9V and 12V options Wide ranges of character fonts and languages printing choices YCP-9 is a 2 inch thermal panel printer module for embedding solution applies to weighing scale, ticket dispenser and gas pump instruments etc.

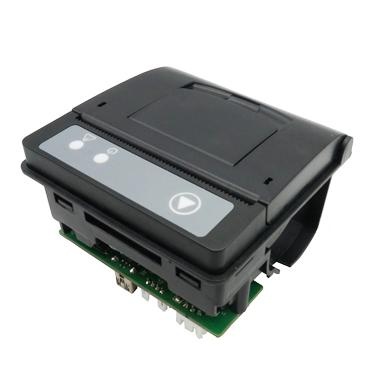

Low power supply 5-9V and 12V options Available interfaces serial RS232 TTL and mini USB Wide ranges of character fonts and languages printing choices YCP-2A has external keypad solution. It is 58mm panel thermal printer module for embedding solution applies to weighing scale, ticket dispenser and gas pump instruments etc.
2INCH thermal printer module Smallest embedded thermal printer Low power supply 5-9V and 12V options Available interfaces serial RS232 TTL USB Easy paper loading for direct thermal printing Wide ranges of character fonts and languages printing choices
2INCH thermal printer module Smallest embedded thermal printer Low power supply 5-9V and 12V options Available interfaces serial RS232 TTL USB Easy paper loading for direct thermal printing Wide ranges of character fonts and languages printing choices
58mm desktop label barcode thermal printer USB and serial interfaces Maximum paper roll diameter: 80mm Support QR CODE Printing

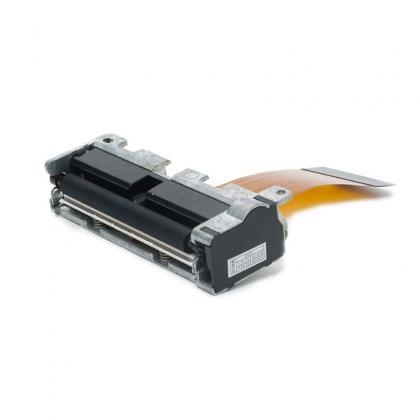

Compact design, straight paper path Fujitsu FTP-628MCL701 compatible High resolution up to 8 dots/mm Printing speed up to 85mm/s High printing endurance up to 50km Vertical motor design for panel printer embedded YC628-701 is a 2 inch thermal printer mechanism compatible with FTP-628MCL701 58mm printer head.
