2 inch thermal printer mechanism
Seiko LTPZ245M-C384-E compatible
Large operation range 4.2V~8.5V
Unique design with stable quality
Printing speed 85mm/s max.
Item NO.:
YC215Payment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
Xiamen, Shanghai, Shenzhen, Ningbo etcLead Time：
10~15 days

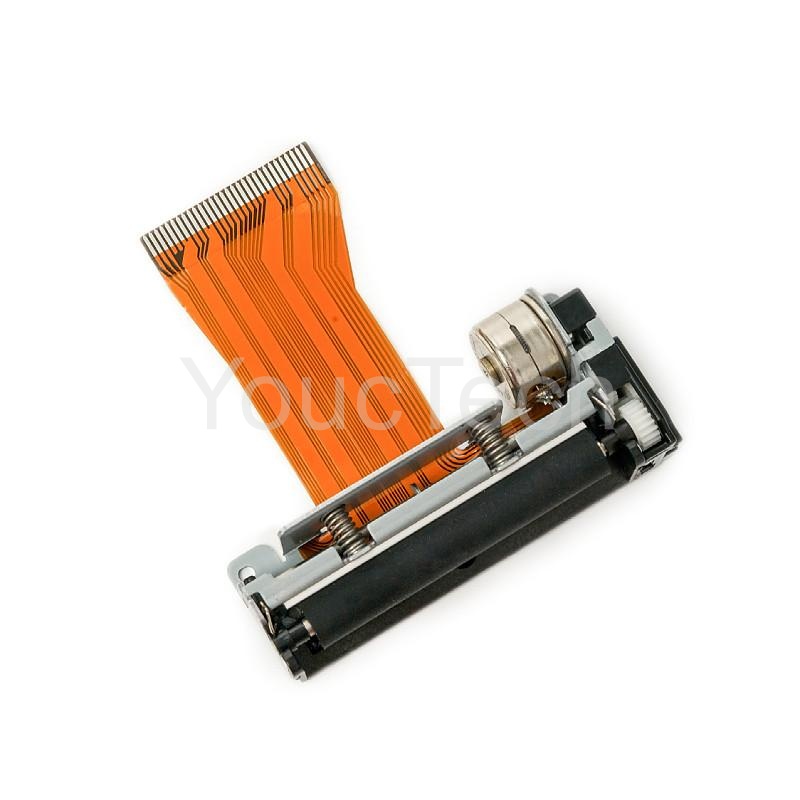

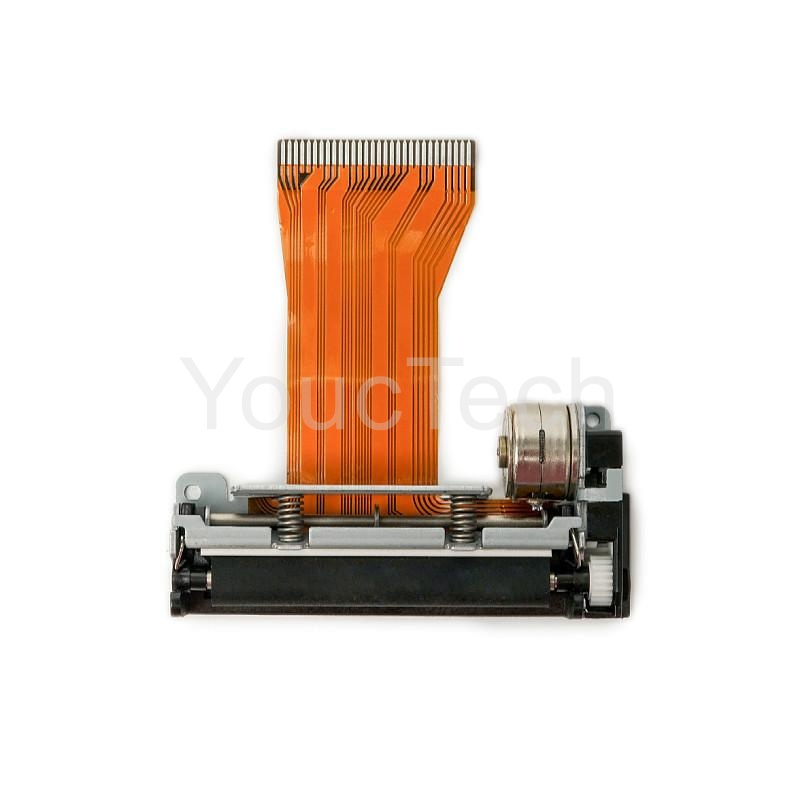

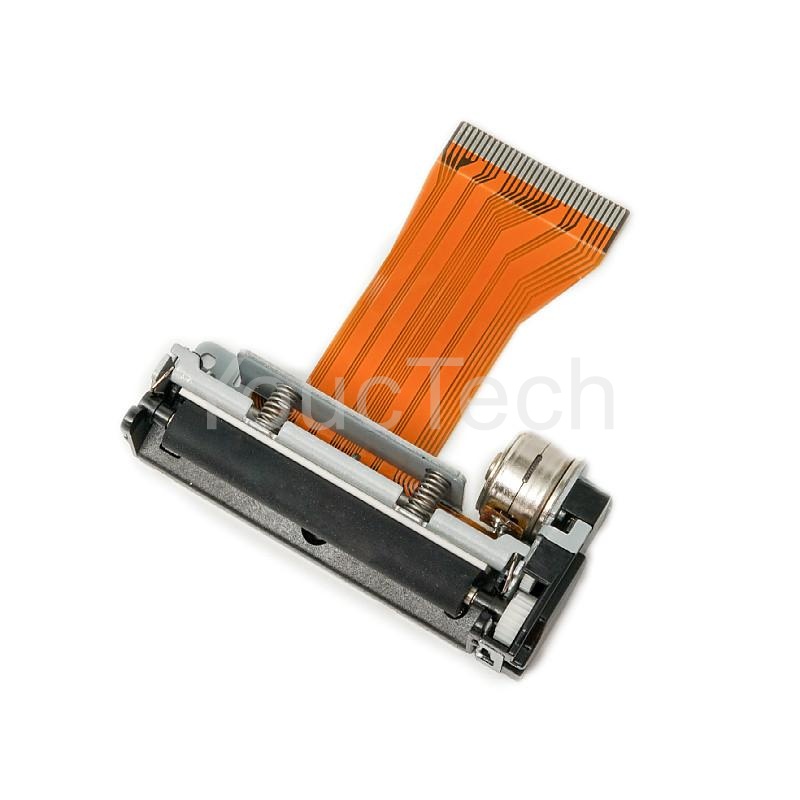

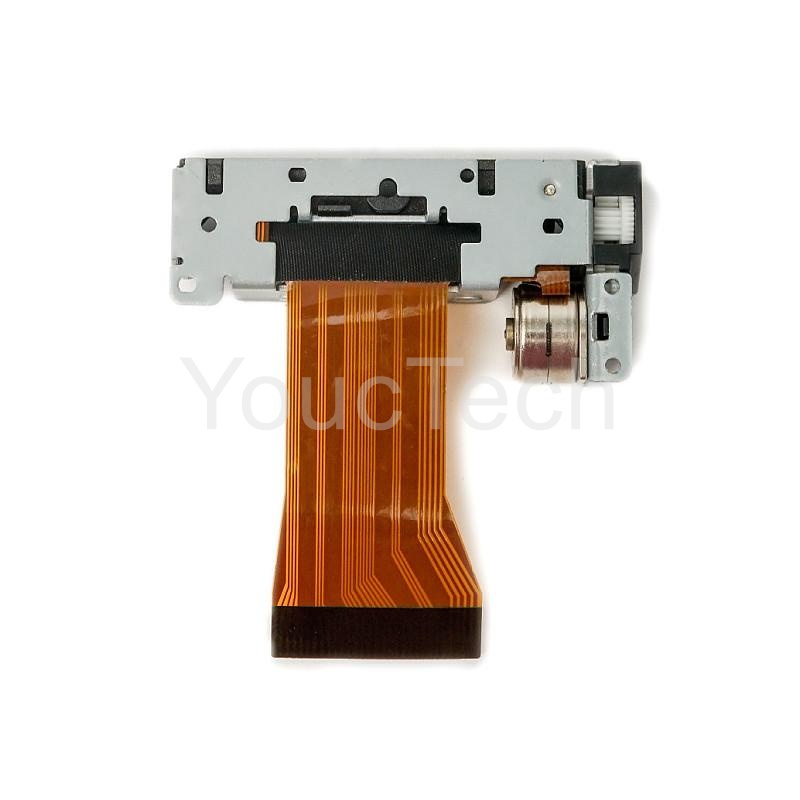

YC215 2 inch 58mm compact design low voltage thermal printer head
YC215 incorporates a compact printer mechanism that uses a thermal line dot print system.
It can be used together with ECR, POS terminals, mobile printer and calculators. This thermal printer head is compatible with LTZ245M-C384-E from Seiko.
Main Features:
Seiko LTZ245M-C384-E compatible
Compact design and light weight
58mm paper and 48mm print width
Wide operation voltage range 4.2V~8.5V
Fast print speed 85mm/s
Durable print life more than 50km
Our advantages:

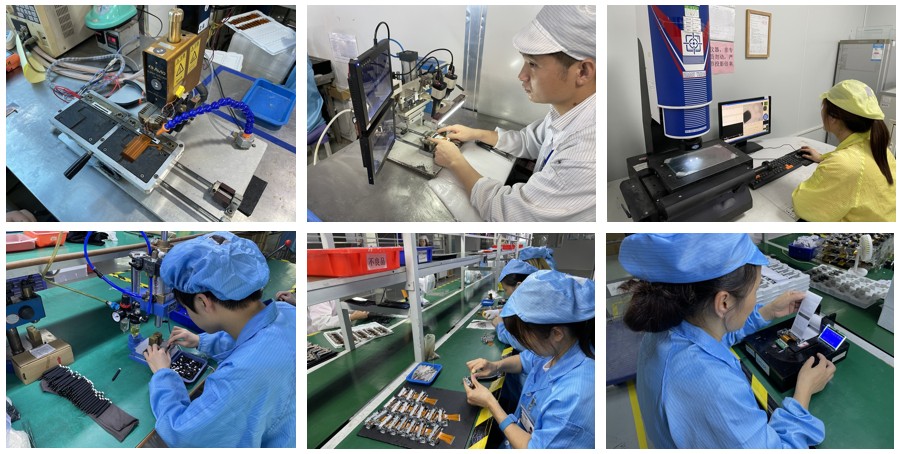

A. Accuracy Product Quality
YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish a strict quality control system, from raw material purchase to printer assembly.
B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.

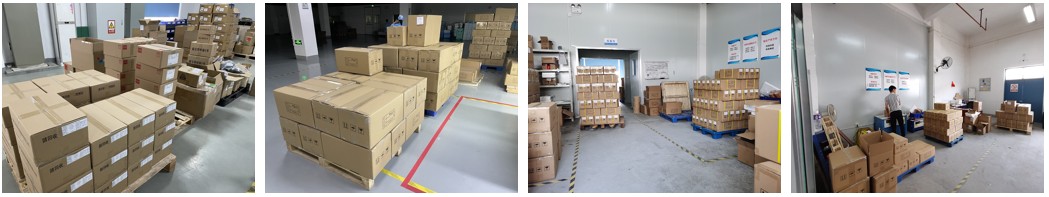

D. Fast delivery and Save customers' importing cost
We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in 7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC215 |
|
Compatible brand |
Seiko LTPZ245M-C384-E |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
384 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
48 |
|
Paper width (mm) |
58 |
|
Max printing speed |
100mm/s |
|
Paper feed pitch (mm) |
0.125 |
|
W*D*H (mm) |
70.2*32.8*15.3 |
|
Head temperature detection |
Via Thermistor |
|
Out of paper detection |
Via Photo interrupter |
|
Operation voltage (V) |
4.2~9.0 |
|
Logic voltage (V) |
3.0 ~7.0 |
|
Paper path |
Curved |
|
Average resistance |
176Ω |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥50km |
|
Operating temperature (°C) |
0～50 |
|
Operating humidity (RH) |
20％～85％ |
|
Storage temperature (°C) |
-25~70 |
|
Storage humidity (RH) |
5％～95％ |
Handheld terminals
EFT POS and Fiscal printers
Portable printers and terminals
Digital tachometers
Data terminal devices
Automotive and Taxi meters
Measuring instruments and analyses
