58mm thermal printer mechanism
APS SS205-V-10-HS compatible
4.2V~9.5V low consumption voltage
Max 80mm/s printing speed
Life of 50km, 100 million pulses
Widely used in pos terminal

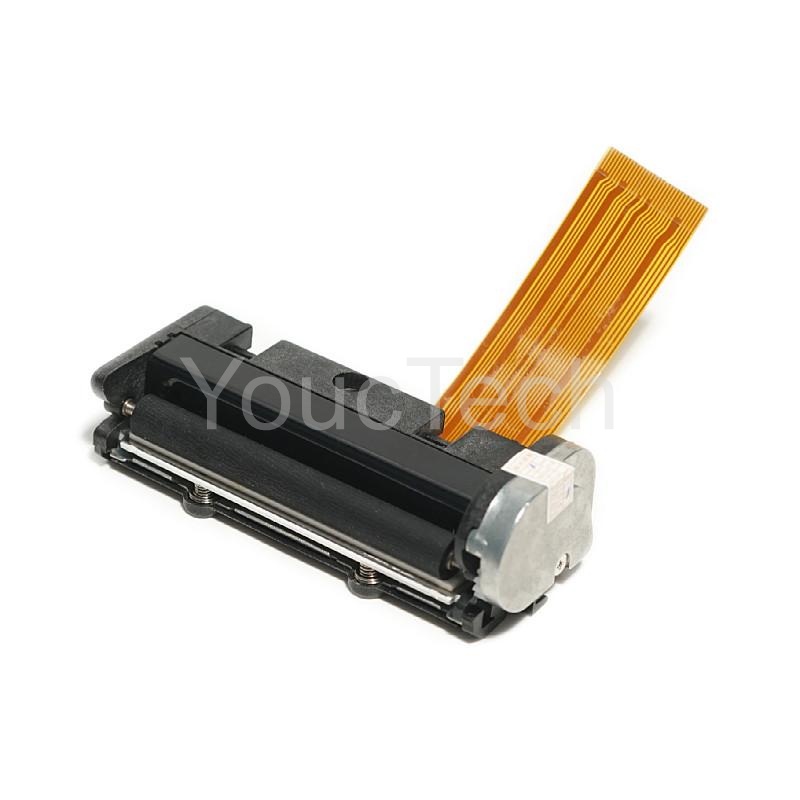

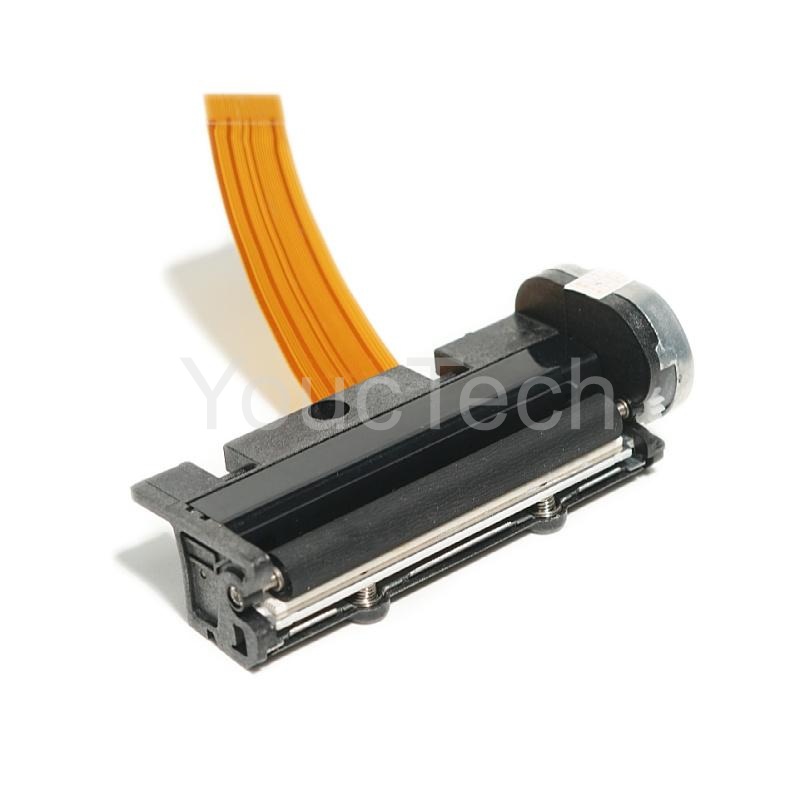

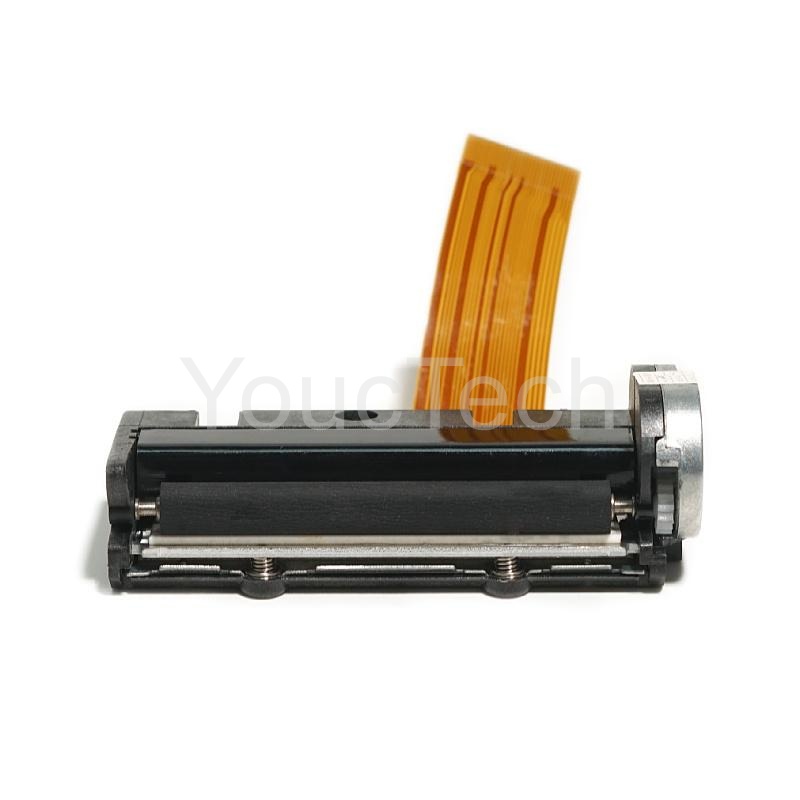

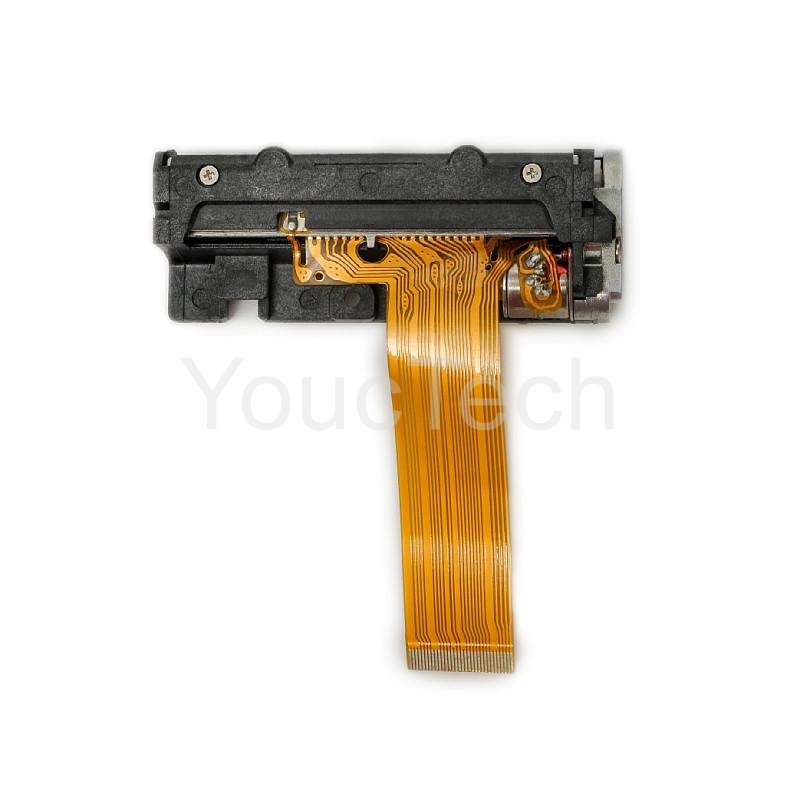

YC205S is a 2 inch thermal printer head compatible with APS SS205-HS 58mm printer head.
Item NO.:
YC205SPayment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
XiamenLead Time：
10~15 daysPrint speed:
90mm/sVoltage:
8.5VPrint method:
Thermal dot line printingYC205S 58mm thermal printer head
APS SS205-HS thermal mechanism compatible
Compact design and easy paper loading
58MM paper and 48mm print width
Low voltage 4.2~8.5 power supply
Fast print speed 85mm/s
Durable print life more than 50km
Our advantages:
A. Accuracy Product Quality

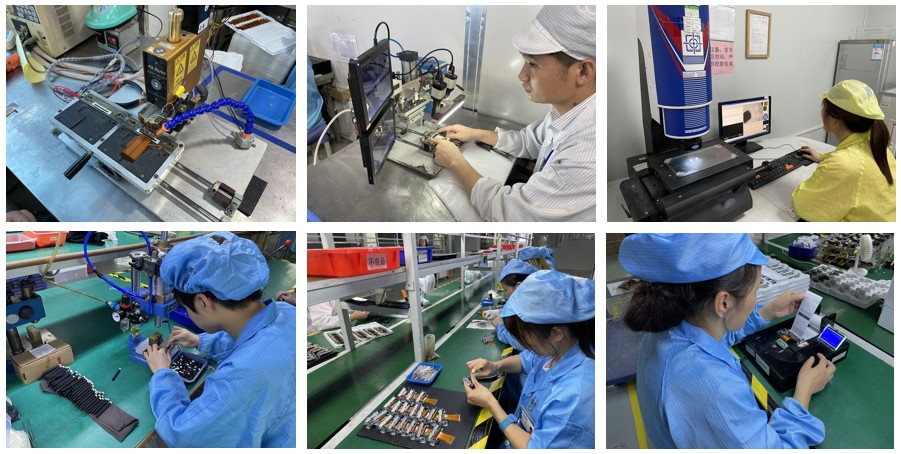

YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish a strict quality control system, from raw material purchase to printer assembly.
B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.
D. Fast delivery and Save customers' importing cost

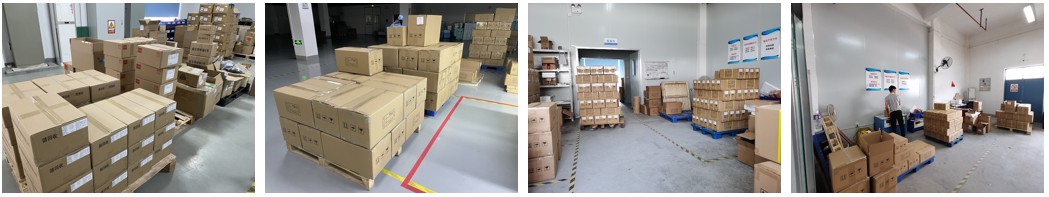

We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in 7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC205S |
|
Compatible brand |
APS SS205-HS |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
384 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
48 |
|
Paper width (mm) |
58 |
|
Max printing speed |
80mm/s |
|
Paper feed pitch (mm) |
0.125 |
|
W*D*H (mm) |
70*33.5*15 |
|
Head temperature detection |
Thermistor |
|
Out of paper detection |
Photo interrupter |
|
Platen detection |
Mechanical switch |
|
Operation voltage (V) |
4.2~8.5 |
|
Logic voltage (V) |
3.0 ~7.0 |
|
Paper path |
Curved |
|
Average resistance |
176Ω |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥50km |
|
Operating temperature (°C) |
0～40 |
|
Operating humidity (RH) |
20％～80％ |
|
Storage temperature (°C) |
-25~70 |
|
Storage humidity (RH) |
10％～90％ |
