58mm thermal printer mechanism
Seiko LTPZ245D-C384-E compatible
Seiko LTPZ245N-C384-E replacement
vertical motor unique design for deepth embedded
Wide operation range 4.2V~8.5V
Compact design with stable quality
Printing speed 85mm/s max.

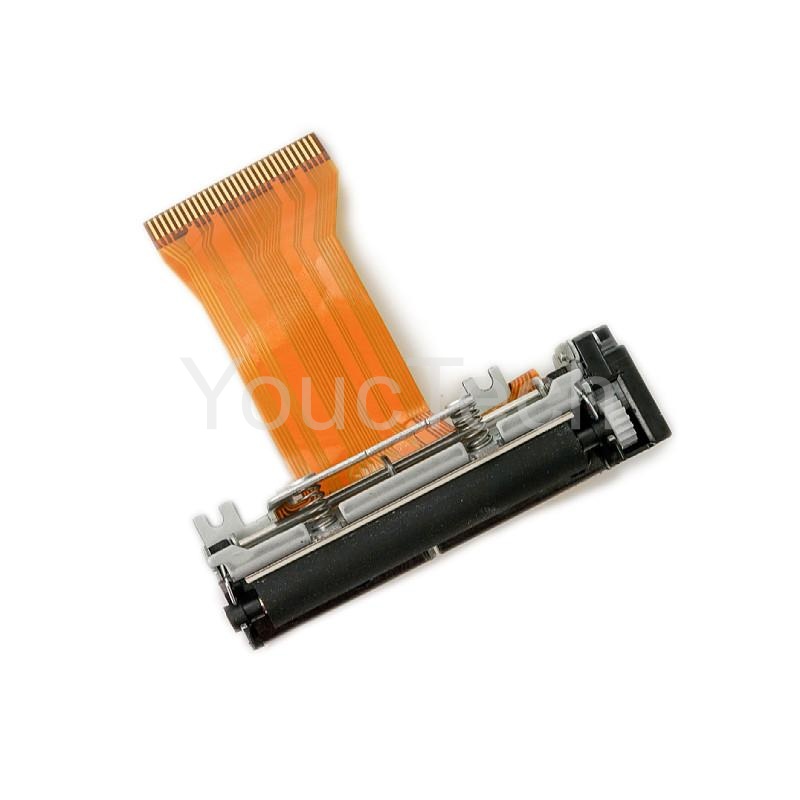

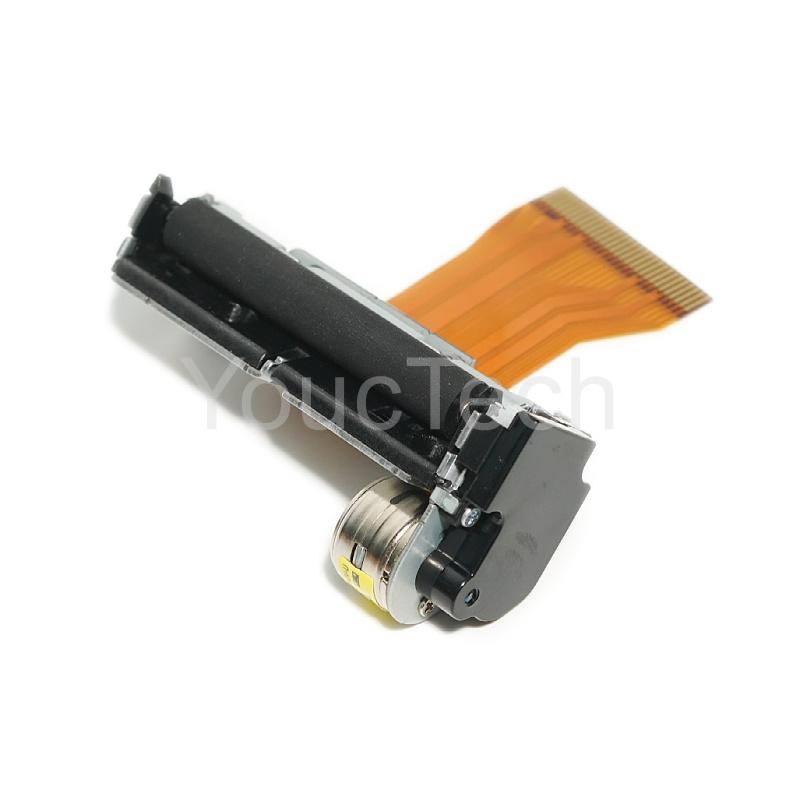

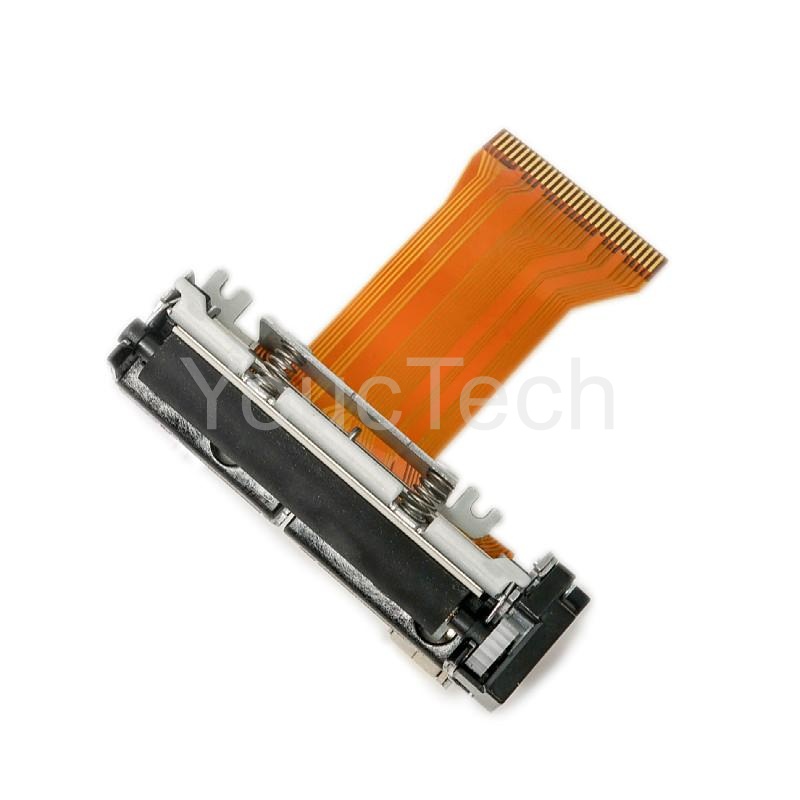

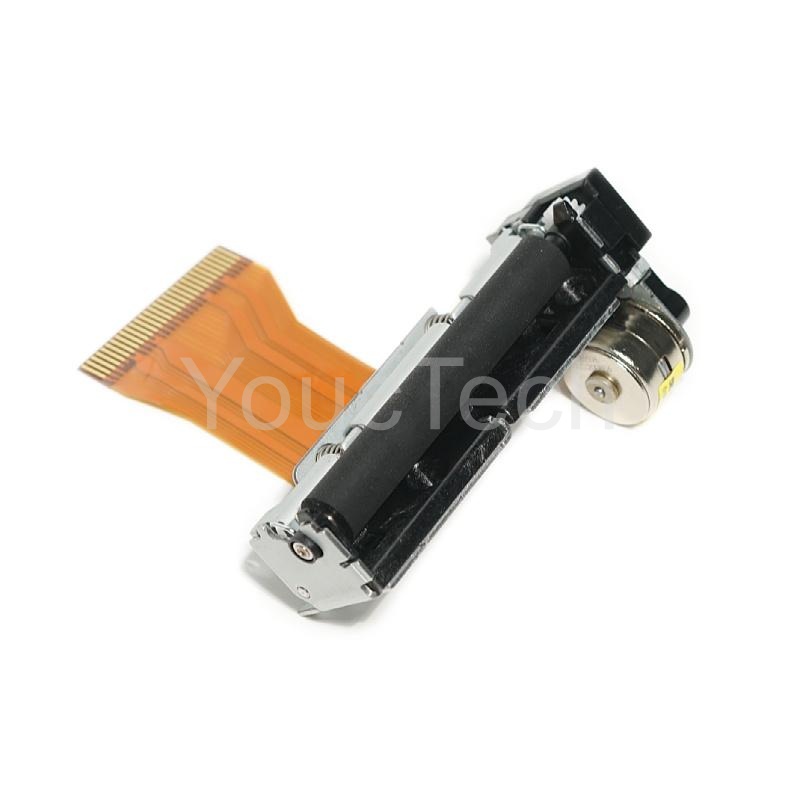

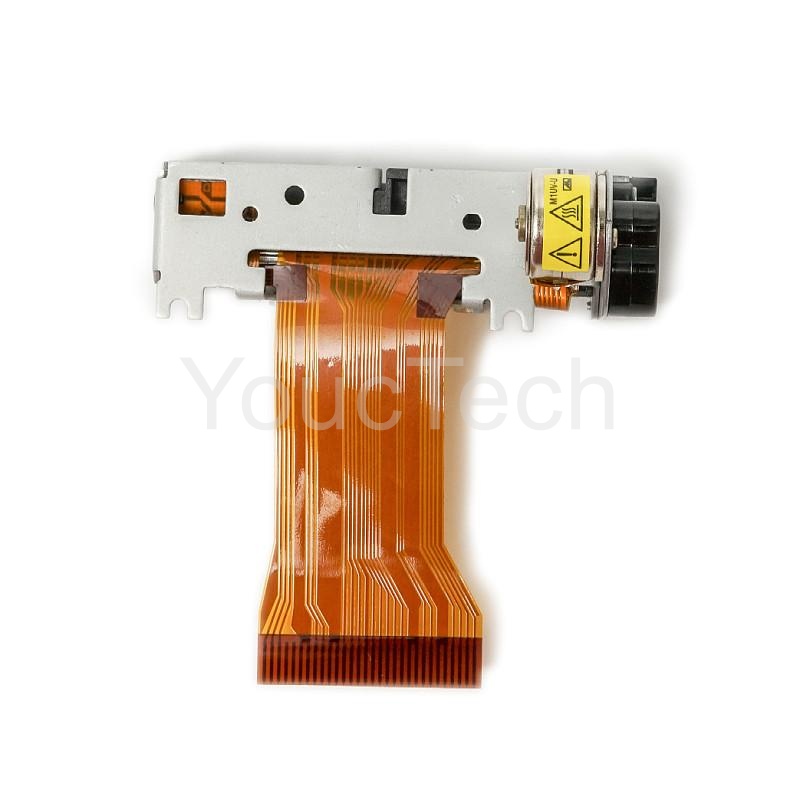

YC215B is a 2 inch thermal printer head compatible with Seiko LTPZ245N-C384-E LTPZ245D-C384-E 58mm printer head.
Item NO.:
YC215BPayment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
XiamenLead Time：
10~15 daysPrint speed:
90mm/sVoltage:
8.5VPrint method:
Thermal dot line printingYC215B 58mm thermal printer head
Seiko LTPZ245N-C384-E, Seiko LTPZ245D-C384-E thermal mechanism compatible
Compact design and easy paper loading
58MM paper and 48mm print width
Low voltage 4.2~8.5 power supply
Fast print speed 85mm/s
Durable print life more than 50km
Our advantages:
A. Accuracy Product Quality
YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish a strict quality control system, from raw material purchase to printer assembly.

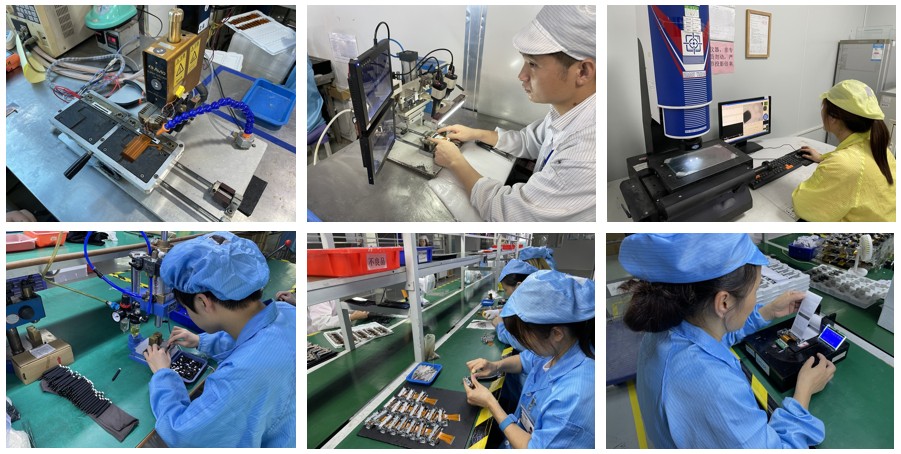

B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.

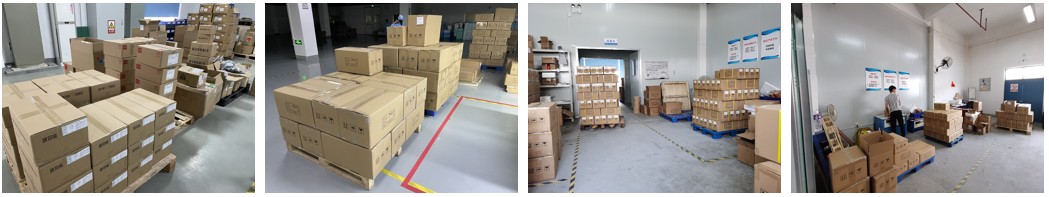

D. Fast delivery and Save customers' importing cost
We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in 7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC215B |
|
Compatible brand |
Seiko LTPZ245N-C384-E, LTPZ245D-C384-E |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
384 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
48 |
|
Paper width (mm) |
58 |
|
Max printing speed |
85mm/s |
|
Paper feed pitch (mm) |
0.125 |
|
W*D*H (mm) |
70.1*21.8*31.0 |
|
Head temperature detection |
Thermistor |
|
Out of paper detection |
Photo interrupter |
|
Operation voltage (V) |
4.2~9.5 |
|
Logic voltage (V) |
3.0~7.0 |
|
Paper path |
Curved |
|
Average resistance |
176Ω |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥50km |
|
Operating temperature (°C) |
0～40 |
|
Operating humidity (RH) |
20％～80％ |
|
Storage temperature (°C) |
-25~70 |
|
Storage humidity (RH) |
10％～90％ |
