Serial thermal control card for APS ELM205-HS

12V Low power supply

USB RS232 interfaces

50-90mm/s Reliable print speed

Thermal mechanism used YC205 (ELM205-HS)

YCB35C is an 3inch thermal control card for 58mm printer mechanism application. Recommended thermal mechanism matching is YC205 (APS ELM205-HS).

Item NO.:
YCB35C
Payment:
T/T, Paypal, Western Union
Product Origin:
Xiamen, China
Shipping Port:
Xiamen
Lead Time：
2~3 weeks
Print speed:
85mm/s
Voltage:
12V
Print method:
thermal dot line printing

PRODUCT OVERVIEW
PRODUCT SPECS
APPLICATION

Product Item: 80mm good quality thermal control card with USB serial (RS232, TTL) interfaces

The YCB35C is a compact layout thermal control board applies to 58mm thermal printer printing. It is workable to our thermal printer head YC205 (APS ELM205-HS-V10 compatible). With available RS232 TTL interfaces, this thermal printer PCB is widely embedded in cash register, weighing scale, ticket dispenser and parking lot for billing receipt printing.

Main features:

Compact size mini layout for embedding
Standard print interface serial RS232 TTL USB

Low power voltage 12V

Durable print life 50km

50-90mm/s various printing speed at different voltage
Various languages support for easy print operation

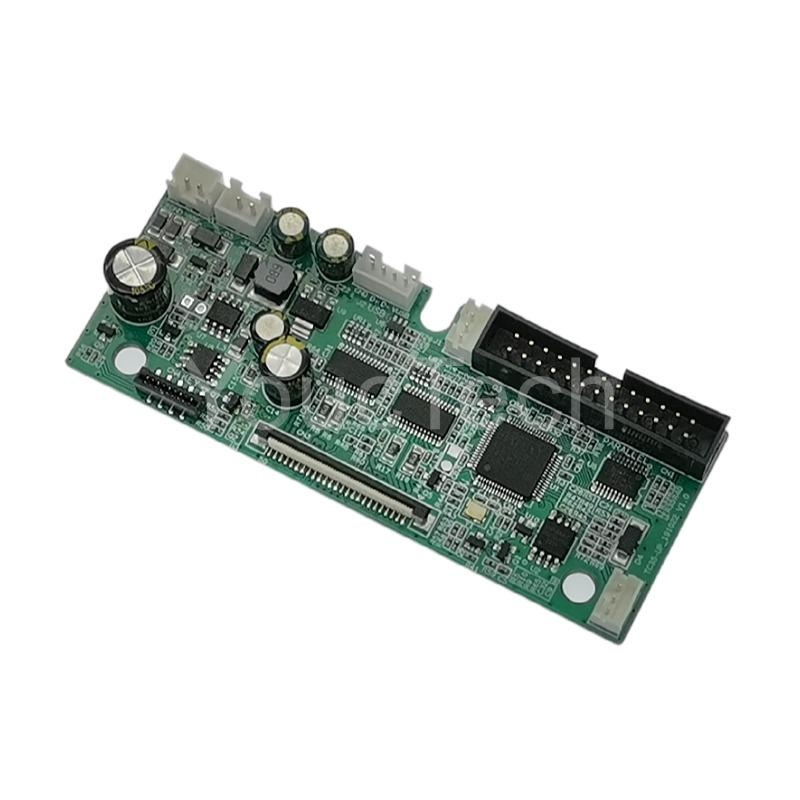

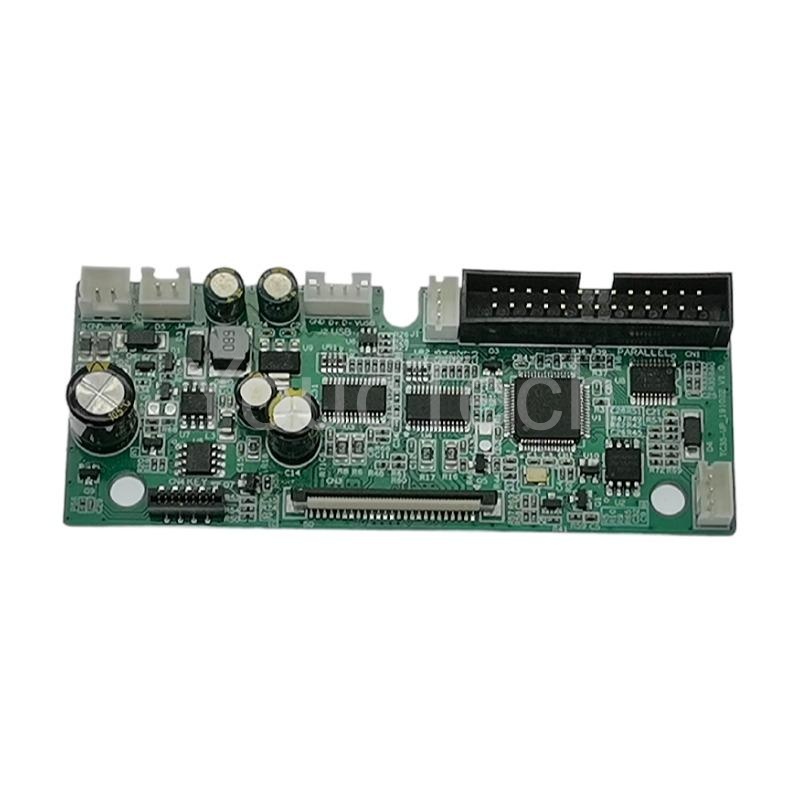

YCB35C thermal print board images

serial thermal control board

ELM205-HS thermal print board

Item	YCB35C
Printing method	thermal dot line printing
Printing width	72mm
Paper width	80mm
Resolution	203DPI (8dots/mm)
Max printing speed	90mm/s
Optional baudrate	9600, 19200, 38400, 57600, 115200
Barcode supported	I25,UPC-A,UPC-E,EAN-8, EAN-13,Codebar,Code39,Code93,Code128,Code11,MSI
Font	ASCII(12x24)
Graphic printing	Direct bitmap printing
Head temperature detection	Thermistor
Out of paper detection	photo interrupter
Communication interface	RS232, TTL, USB
Power supply	5.0V~9.0V, 12V
Abrasion resistance	50km
Operating temperature	5～45°C
Operating humidity	20％～90％RH (40℃)
Storage temperature	-40～60°C
Storage humidity	20％～95％RH (40℃)
