80mm thermal printer mechanism
Compatible Seiko CAPD347
High print speed 200mm/s available
Good reliable autocutter 1,000,000 cuts
Low print noise and free maintenance
Easy paper installation with platen block open design
Item NO.:
YC347DPayment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
Xiamen, Shanghai, Shenzhen, Ningbo etcLead Time：

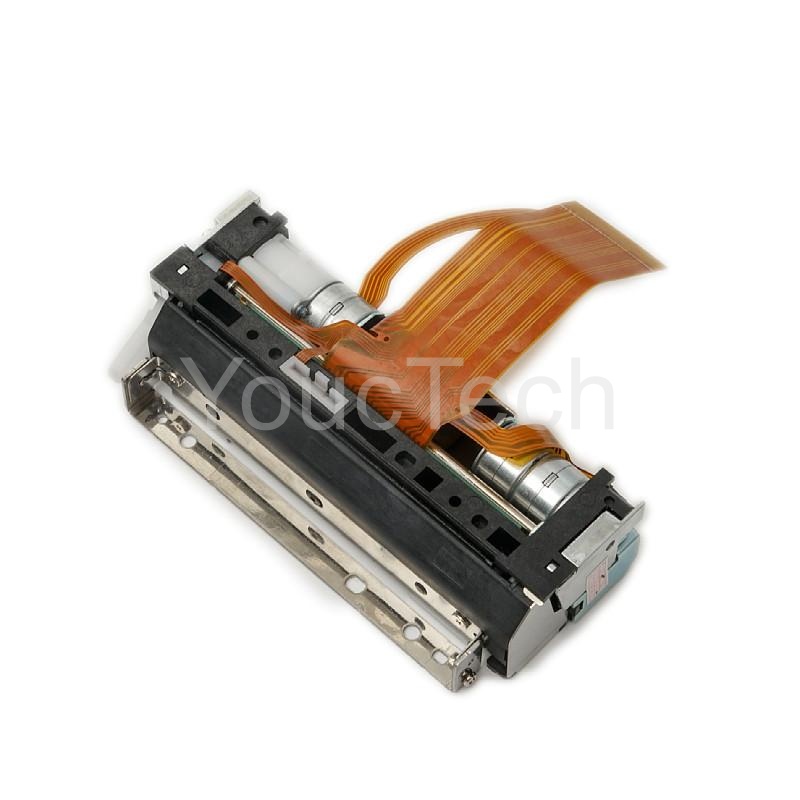

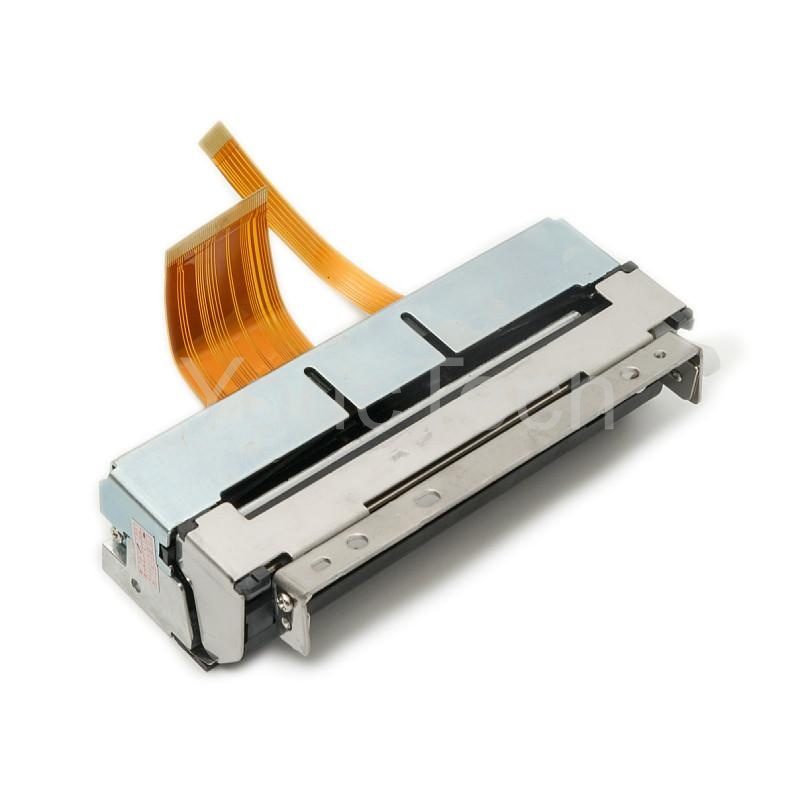

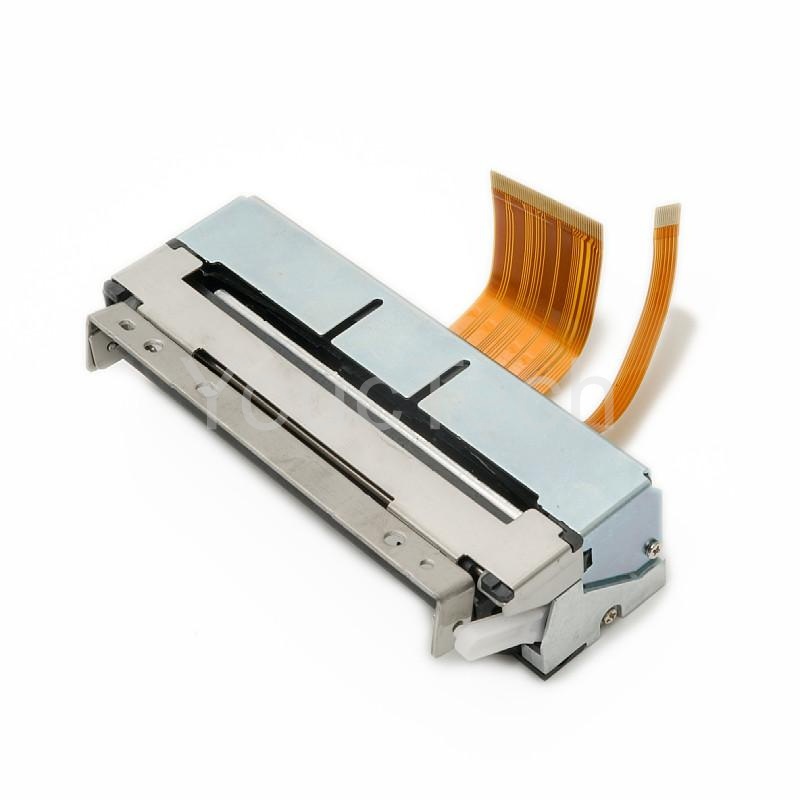

10~15 daysYC347D 3inch 80mm auto cutting fast speed printed thermal printer head mechanism
YC347D printer head has the thermal line dot printing method integrated the autocutter with the slide cutting
method. This thermal mechanism is replacement of Seiko CAPD347 series. It can be used with measuring instruments and analyzer, a POS, a communication terminal device,
or a data terminal device.
Main Features:
Compact design and easy paper loading
80MM paper and 72mm print width
Wide voltage 24V power supply
Fast print speed 220mm/s
Durable print life more than 150km
Our advantages:

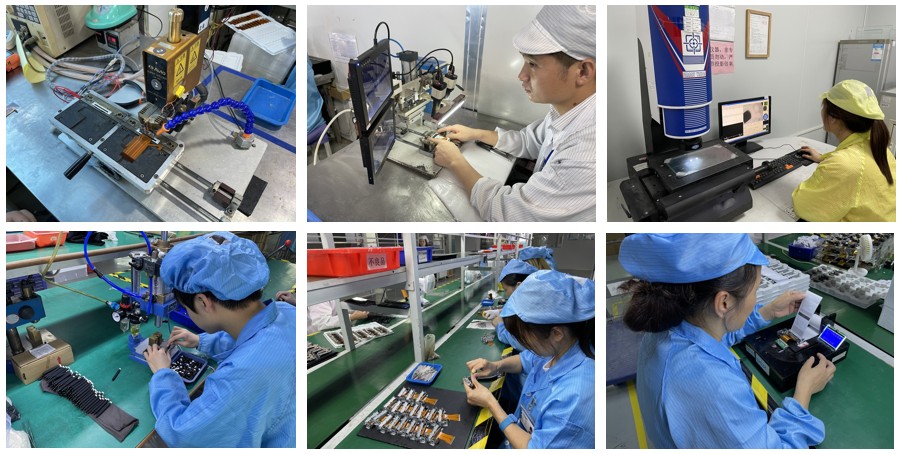

A. Accuracy Product Quality
YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish a strict quality control system, from raw material purchase to printer assembly.
B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.

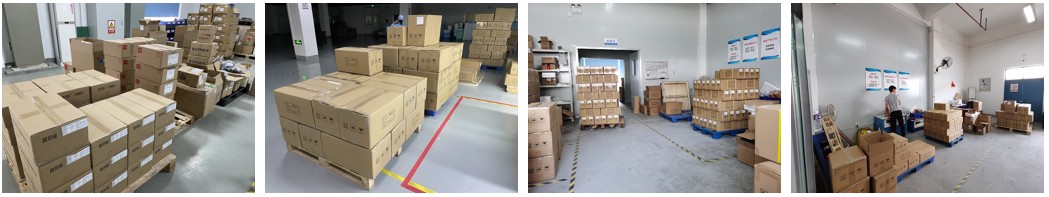

D. Fast delivery and Save customers' importing cost
We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in 7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC347D |
|
Compatible brand |
Seiko CAPD347 |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
576 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
72 |
|
Paper width (mm) |
80 |
|
Max printing speed |
170mm/s |
|
Paper feed pitch (mm) |
0.0625 |
|
W*D*H (mm) |
105.1*44*27.4 |
|
Head temperature detection |
Via thermistor |
|
Platen position detection |
Via mechanical switch |
|
Out of paper detection |
Via photo interrupter |
|
Cutter home position detection |
Via transmissive type photo interrupter |
|
Head working voltage (V) |
21.6~26.4 (Typical: 24V) |
|
Logic voltage (V) |
4.75~5.25 |
|
Paper feed voltage (V) |
21.6~26.4 |
|
Cutter voltage (V) |
21.6~26.4 |
|
Paper path |
Curved |
|
Cutting method |
Auto cut, Full/partial cut (tab left at the center) |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥100km |
|
Paper cut resistance |
≥500,000 cuts |
|
Operating temperature (°C) |
0～50 |
|
Operating humidity (RH) |
20％～85％ |
|
Storage temperature (°C) |
-25~60 |
|
Storage humidity (RH) |
5％～95％ |
Desktop pos terminal
Lottery devices
Fiscal ECR
Portable printer deviceMedical Instrument
Measuring equipment
