YC532 is a 3inch thermal printer mechanism compatible with Epson M-T532 80mm printer head.
Item NO.:
YC532Order(MOQ):
100Payment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
XiamenLead Time：
10~15 daysProduct Item: YC532 80mm thermal printer head Epson M-T532 thermal mechanism compatible

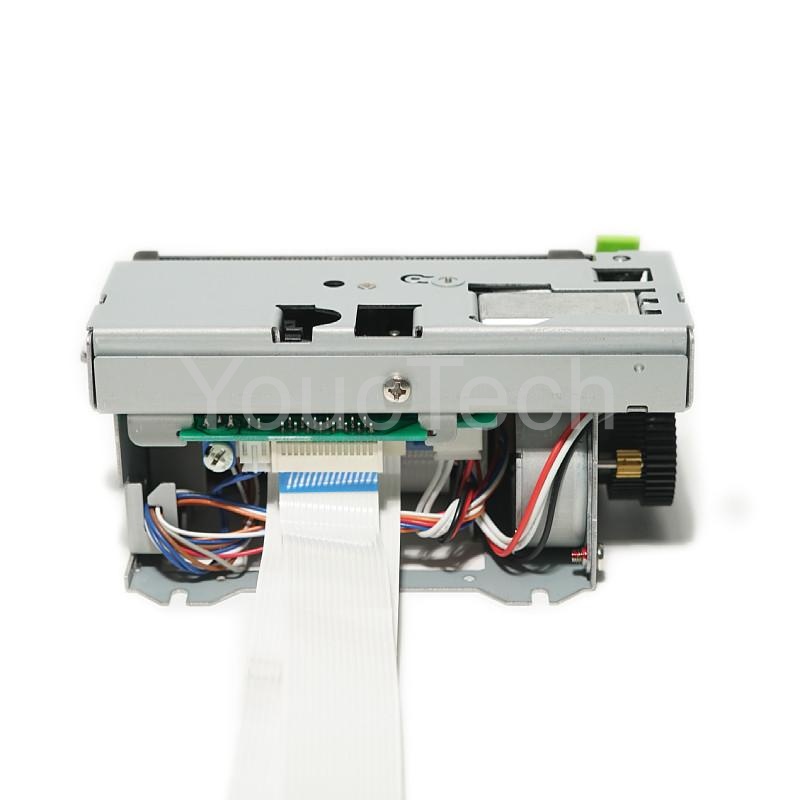

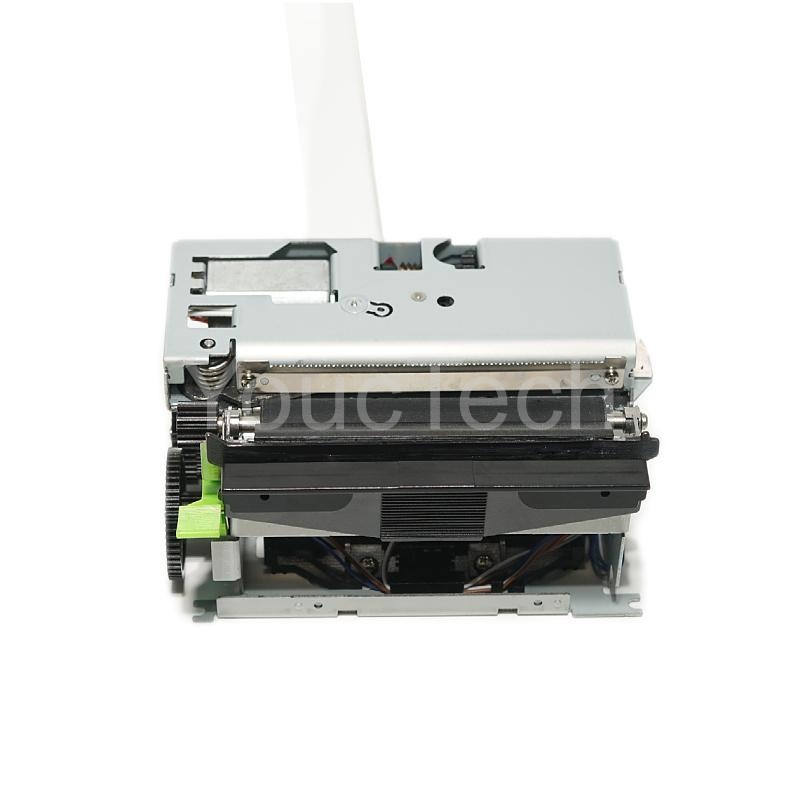

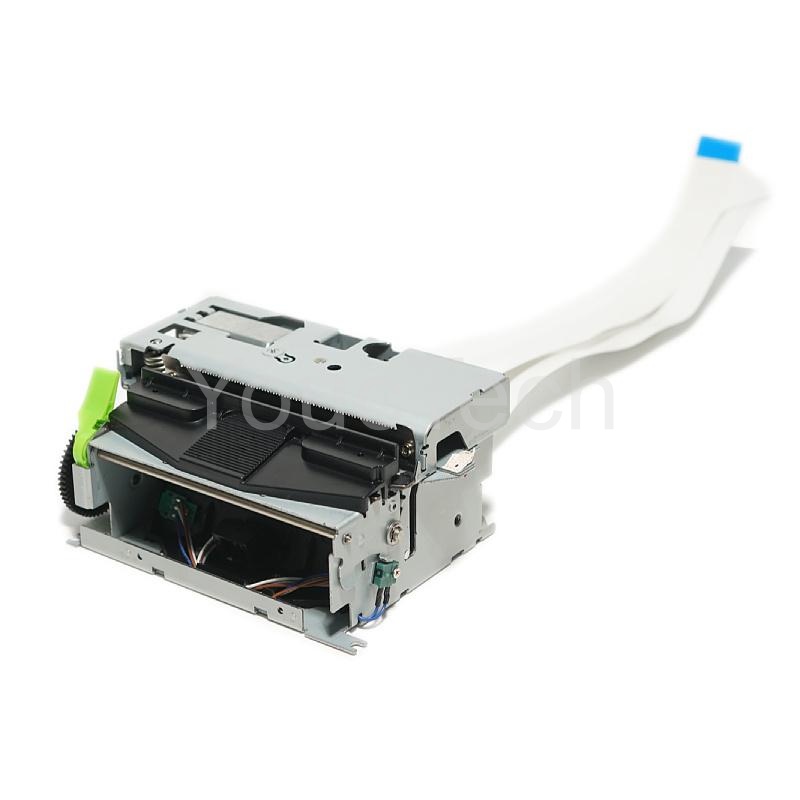

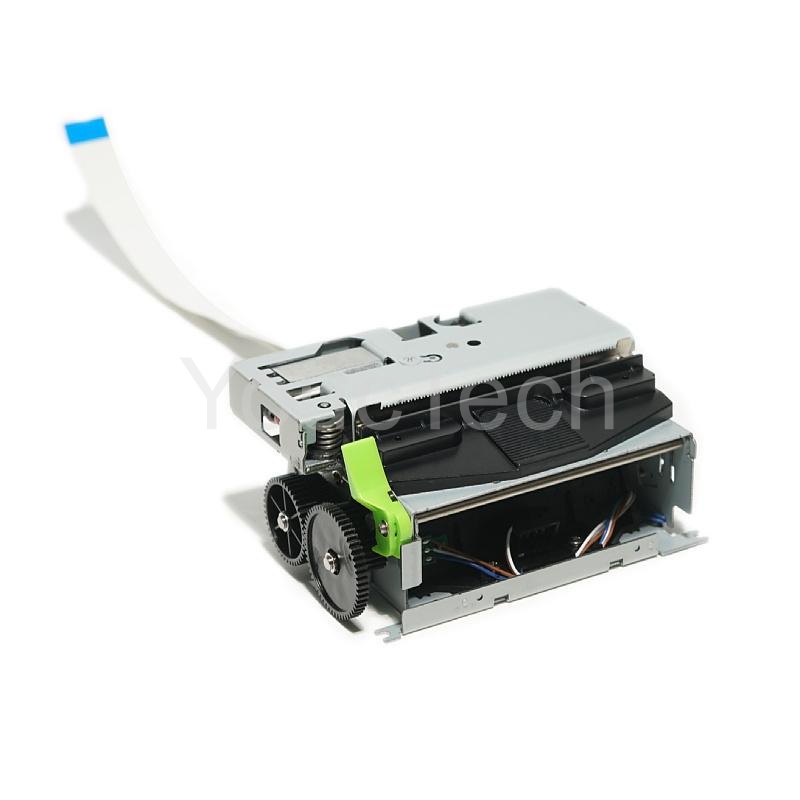

YC532 is compact design direct thermal printer mechanism, which is equivalent of Epson M-T532. This printer head is widely used in medical devices ( such as Brood test instrument, Urine test instrument) and portable label printing for various applications. It is a front open printer mechanism with latch function. YC532 comes with a 1 year warranty as standard.
Main Features:
Compact design and easy paper loading
80MM paper and 72mm print width
Wide voltage 24V power supply
Fast print speed 220mm/s
Durable print life more than 150km
Our advantages:
A. Accuracy Product Quality

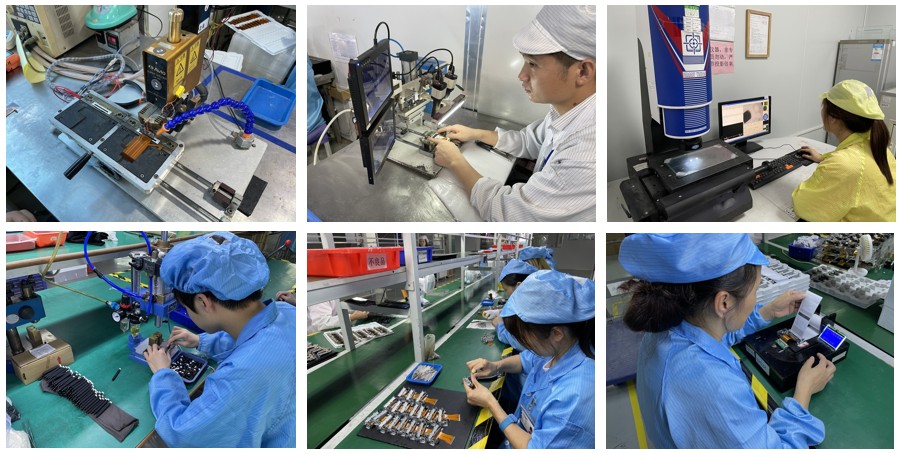

YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish a strict quality control system, from raw material purchase to printer assembly.
B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.
D. Fast delivery and Save customers' importing cost

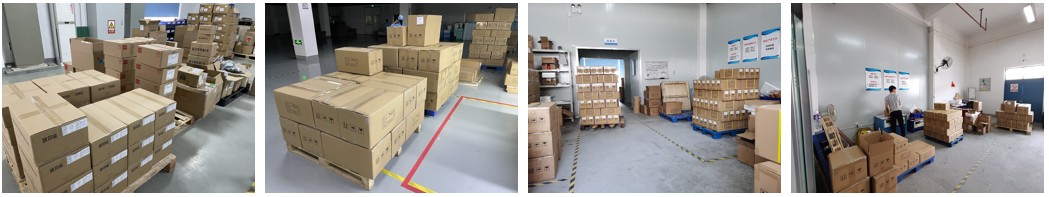

We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in 7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC532 |
|
Compatible brand |
Epson M-T532 |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
576 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
72 |
|
Paper width (mm) |
80 |
|
Max printing speed |
170mm/s |
|
Paper feed pitch (mm) |
0.0625 |
|
W*D*H (mm) |
105.1*44*27.4 |
|
Head temperature detection |
Via thermistor |
|
Platen position detection |
Via mechanical switch |
|
Out of paper detection |
Via photo interrupter |
|
Cutter home position detection |
Via transmissive type photo interrupter |
|
Head working voltage (V) |
21.6~26.4 (Typical: 24V) |
|
Logic voltage (V) |
4.75~5.25 |
|
Paper feed voltage (V) |
21.6~26.4 |
|
Cutter voltage (V) |
21.6~26.4 |
|
Paper path |
Curved |
|
Cutting method |
Auto cut, Full/partial cut (tab left at the center) |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥100km |
|
Paper cut resistance |
≥500,000 cuts |
|
Operating temperature (°C) |
0～50 |
|
Operating humidity (RH) |
20％～85％ |
|
Storage temperature (°C) |
-25~60 |
|
Storage humidity (RH) |
5％～95％ |
Portable Label Printing
Medical Instrument
Measuring equipment
Weighing scales
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Categories

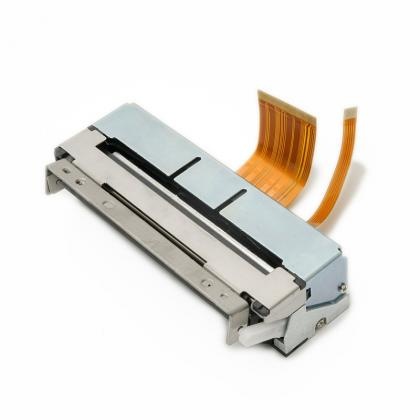

3inch thermal printer mechanism Seiko LTPF347F-C576-E compatible Fast printing speed max 220mm/s High resolution up to 8 dots/mm High printing endurance up to 150km Auto cutter solution for easy paper takeout Platen latch function for easy releasing
