2INCH thermal printer module
Smallest embedded thermal printer
Low power supply 5-9V and 12V options
Available interfaces serial RS232 TTL USB
Easy paper loading for direct thermal printing
Wide ranges of character fonts and languages printing choices
Item NO.:
YCP-8Payment:
T/T, L/C, Paypal, Western UnionProduct Origin:
Xiamen, ChinaColor:
blackShipping Port:
XiamenLead Time：
2~3weeksPrint speed:
50-90mm/sVoltage:
5-9V, 12VPrint method:
thermal dot line printingProduct Item: 2 inch compact panel thermal print module serial USB interface

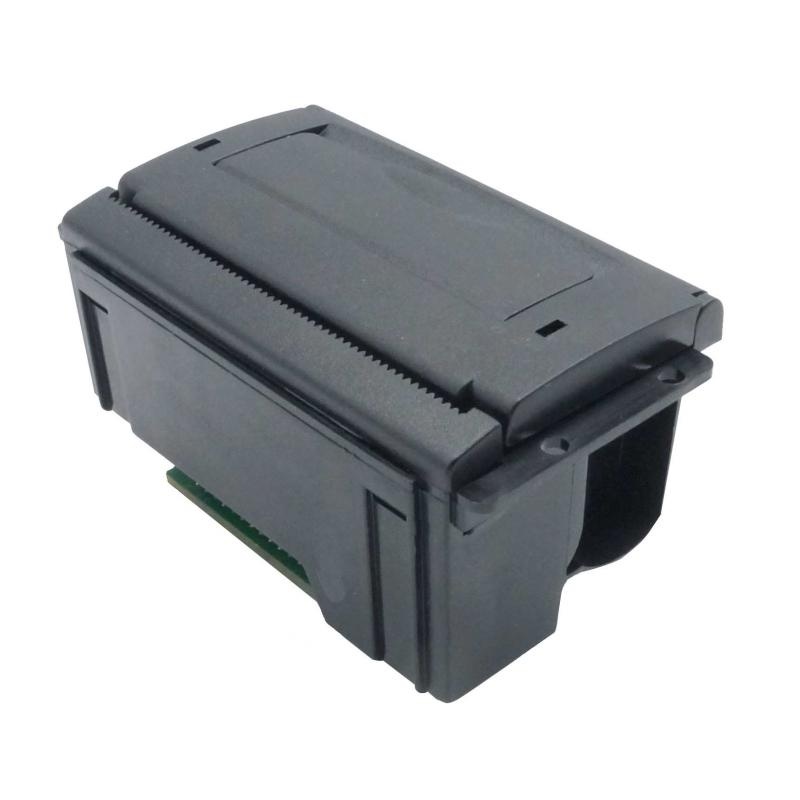

YCP-8 is the smallest 2 inch panel thermal printer module which is for receipt printing. Its stable print speed and compact appearance make it widely applied to taximeters.
Main features:
Easy operation, compact design appearance
50-80mm/s stable printing speed
Low voltage of 5-9V and 12V choices
Opitonal interfaces RS232, TTL or USB
Various languages support, easily operated
YCP-8 layout dimension
|
Model |
YCP-8 |
|
|
Printing |
Method |
Direct thermal line printing |
|
Number of dots/line |
384 |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
48mm |
|
|
Max printing speed |
50~80mm/s |
|
|
Paper |
Type |
Thermal receipt paper |
|
width |
58mm | |
|
Roll diameter |
Max 40mm |
|
| Cutting type |
Manual tear bar |
|
|
Detection |
Head temperature detection | Via thermistor |
|
Out of paper detection |
Via photo interrupter |
|
|
Power supply |
Driven voltage |
DC5.0V~9.0V, 15W/DC 5V, 3A |
|
Emulation |
ESC/POS command |
|
|
Character |
Character set |
GBK, ASCII character, Bar code, Support for different density point bitmap and download the bitmap print, QR code. |
|
Font |
9X17(ASCII),24x24(GBK) |
|
|
Reliability |
MCBF |
5 million lines |
|
Interfaces |
Serial (RS232,TTL),USB |
|
|
Physical |
Outline dimension (W*D*H) |
76.8*77.4*43.5mm |
|
Installation dimension (W*H) |
73*73mm |
|
|
Inlaid depth |
34.5mm |
|
|
Environment |
Operating temperature (°C) |
5～50 |
|
Operating humidity (RH) |
10％～80％ |
|
|
Storage temperature (°C) |
-20~60 |
|
|
Storage humidity (RH) |
10％～90％ |
|
Taximeters
Automotive
Weighing scales
Measuring instruments
Data terminal devicesPrevious:
58MM embedded thermal printer serial usb interfaceNext:
2 inch panel mount thermal printer with usb serial interfaceIf you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
