Available interfaces serial RS232 TTL and mini USB
Low power supply 5-9V and 12V options
Wide ranges of character fonts and languages printing choices
YCP-9 is a 2 inch thermal panel printer module for embedding solution applies to weighing scale, ticket dispenser and gas pump instruments etc.
Item NO.:
YCP-9Product Origin:
Xiamen, ChinaColor:
Transparent blackShipping Port:
XiamenPrint speed:
50-90mm/sVoltage:
5-9V, 12VPrint method:
thermal dot line printingProduct Item: 58mm thermal panel print module serial usb interface
YCP-9 is a 58mm 2 inch panel thermal printer module for billing ticket receipt print that is suitable to embedding printing solutions
Main features:
Easy operation, durable performance
Continuous work for 6 hours and 50km print life
50-90mm/s fast printing speed
Standard connecting ports USB, bluetooth options
Various languages support, easily operated

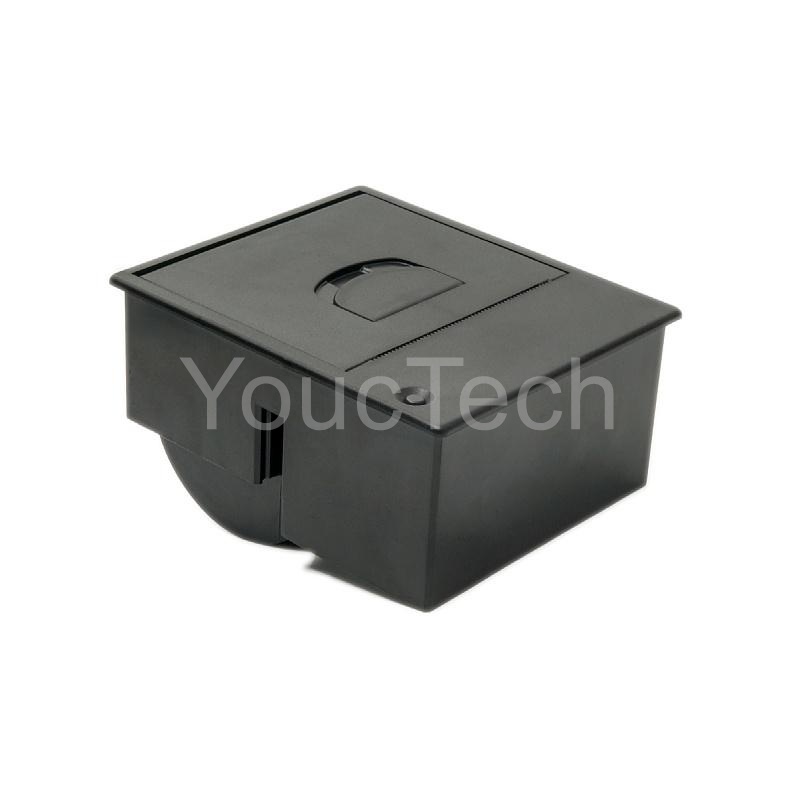

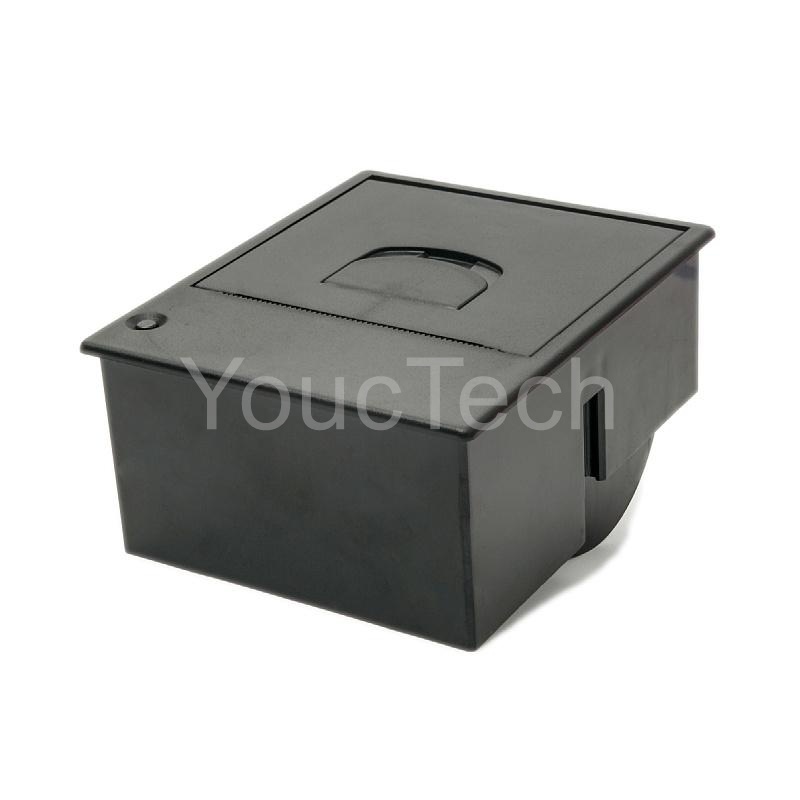

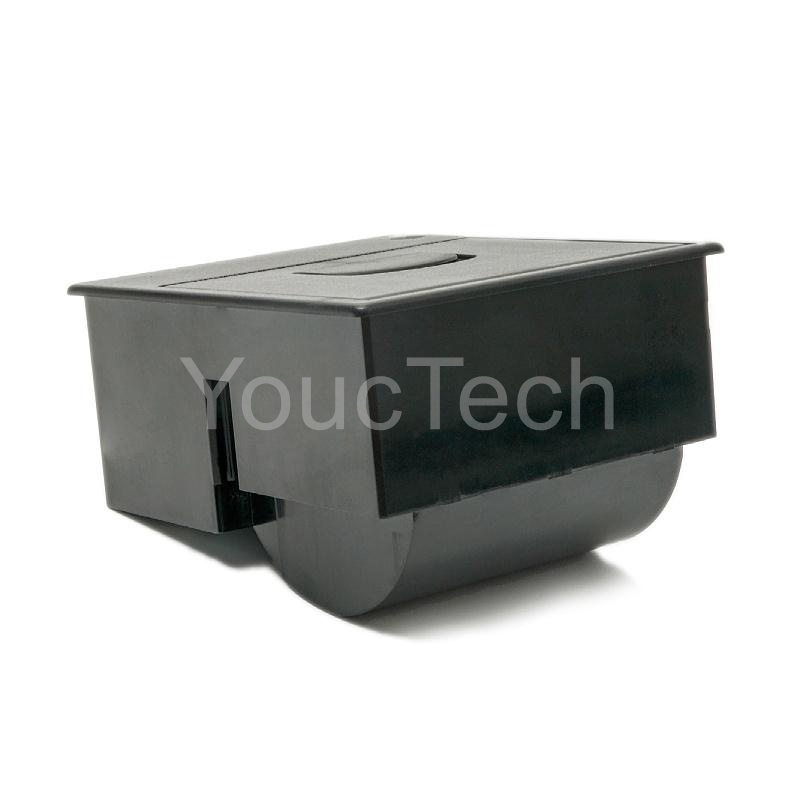

YCP-2 thermal printer module images
Overall description of printer parts
|
Model |
YCP-9 |
|
|
Printing |
Method |
Direct thermal line printing |
|
Number of dots/line |
384 |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
48mm |
|
|
Max printing speed |
50~80mm/s |
|
|
Paper |
Type |
Thermal receipt paper |
|
width |
58mm | |
|
Roll diameter |
Max 40mm |
|
| Cutting type |
Manual tear bar |
|
|
Detection |
Head temperature detection | Via thermistor |
|
Out of paper detection |
Via photo interrupter |
|
|
Power supply |
Driven voltage |
5.0V~9.0V |
|
12V |
||
|
Emulation |
ESC/POS command |
|
|
Character |
Character set |
GBK, ASCII character, Bar code, Support for different density point bitmap and download the bitmap print, QR code. |
|
Font |
9X17(ASCII),24x24(GBK) |
|
|
Reliability |
MCBF |
5 million lines |
|
Interfaces |
Serial (RS232,TTL) +USB |
|
|
Physical |
Outline dimension (W*D*H) |
97.07*82.07*55.5mm |
|
Installation dimension (W*H) |
92*77mm |
|
|
Environment |
Operating temperature (°C) |
5～50 |
|
Operating humidity (RH) |
10％～80％ |
|
|
Storage temperature (°C) |
-20~60 |
|
|
Storage humidity (RH) |
10％～90％ |
|

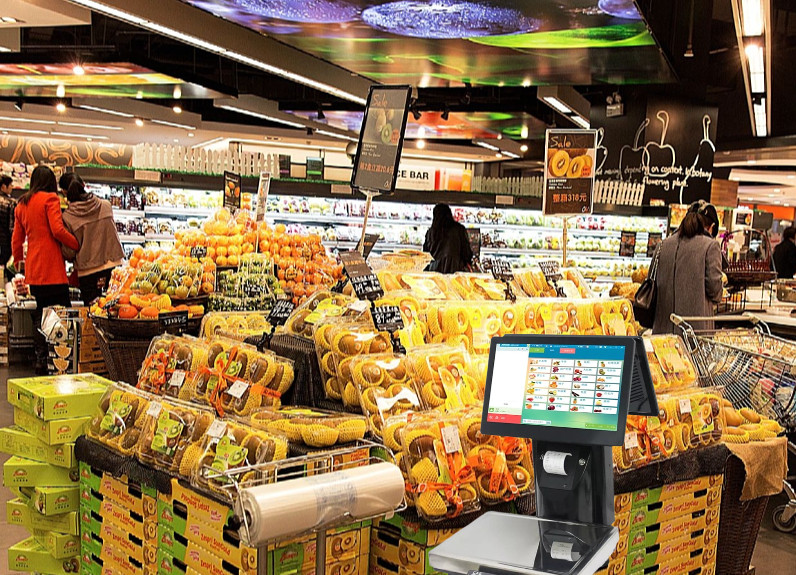

Weighing scale
Oil dispenser
