110mm thermal printer mechanism
Compatible Seiko LTPV445
High speed print up to 100mm/s
Platen latch function for easy release
Vertical motor form design
Auto loading paper insertion
Easy paper operation
Item NO.:
YC445APayment:
T/T, Western Union, PaypalProduct Origin:
Xiamen, ChinaShipping Port:
Xiamen, Shanghai, Shenzhen, Ningbo etcLead Time：
10~15 daysPrint speed:
Voltage:
Print method:

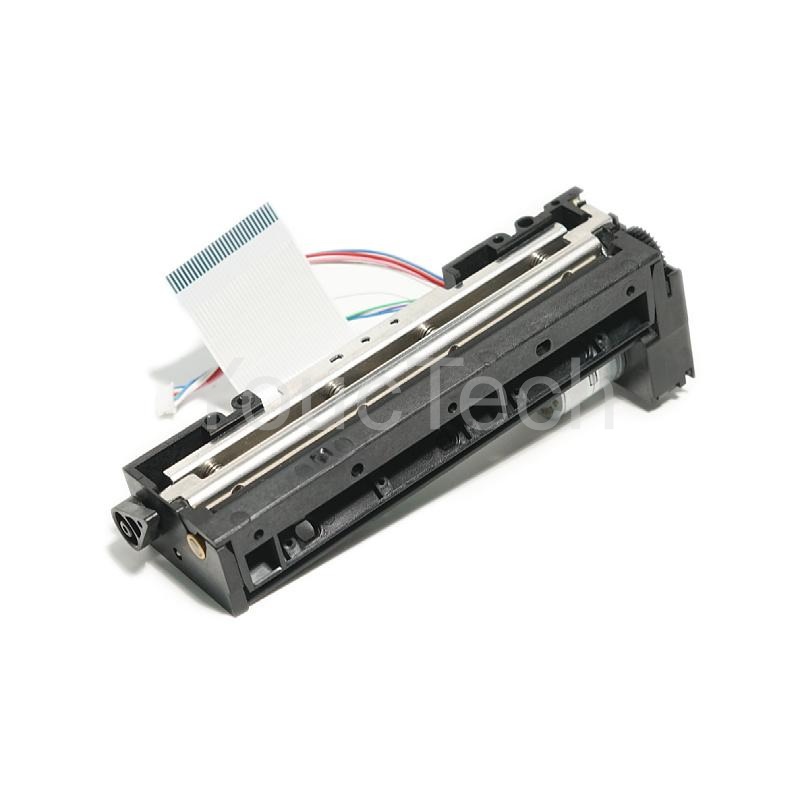

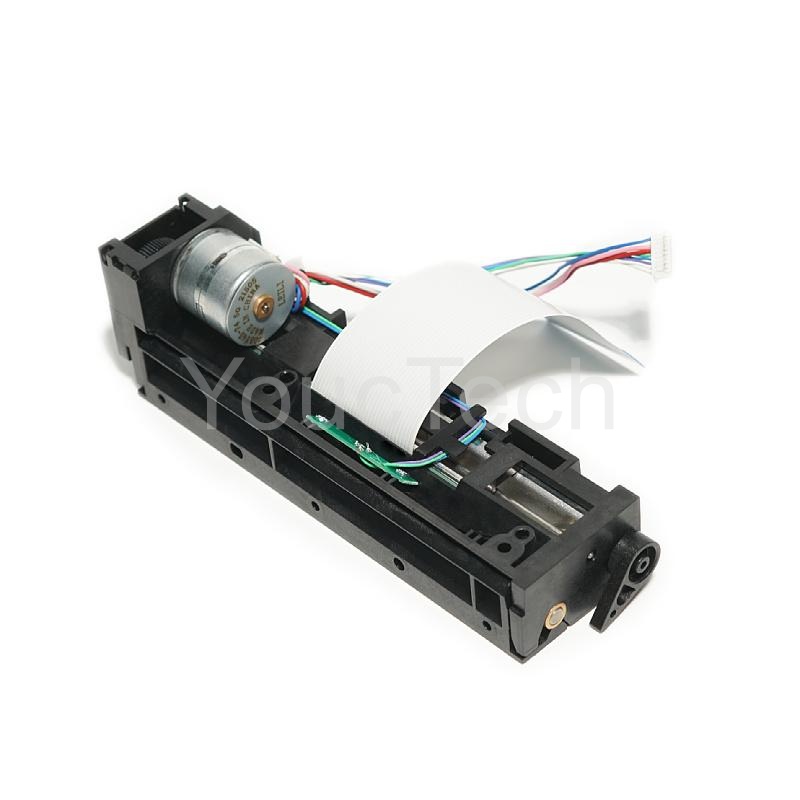

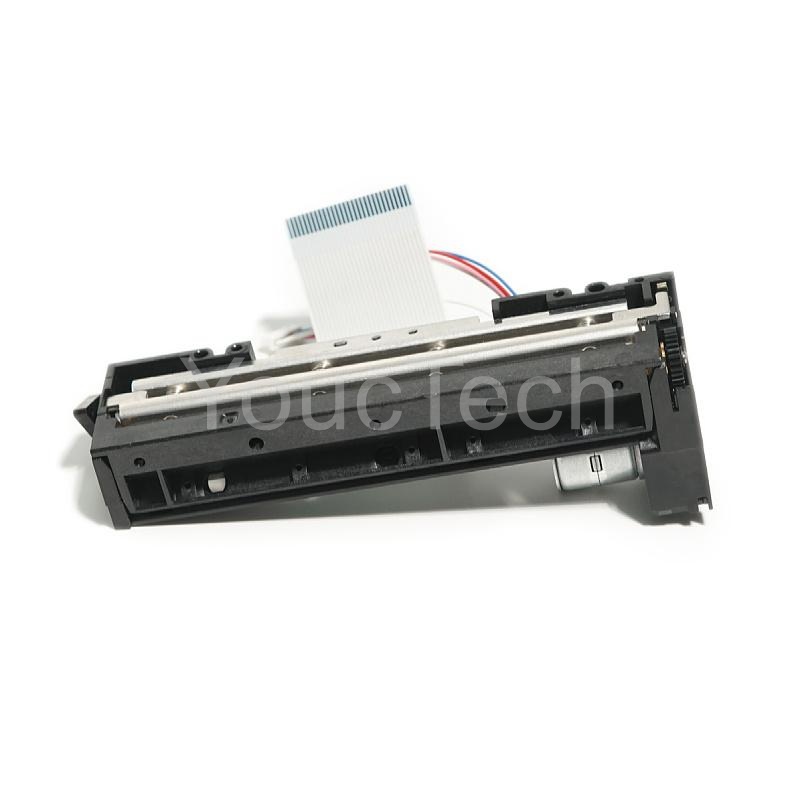

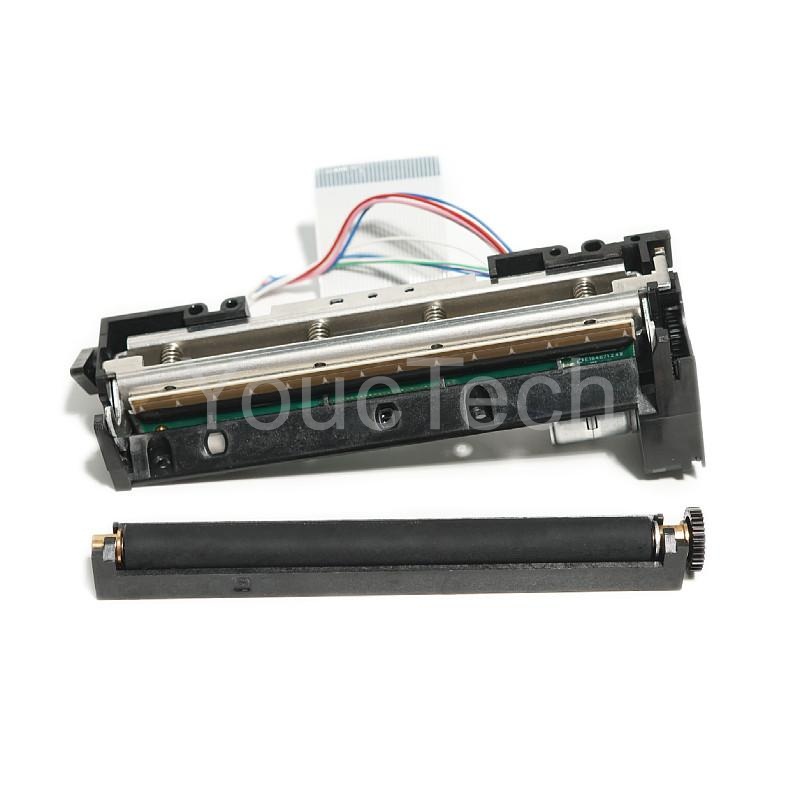

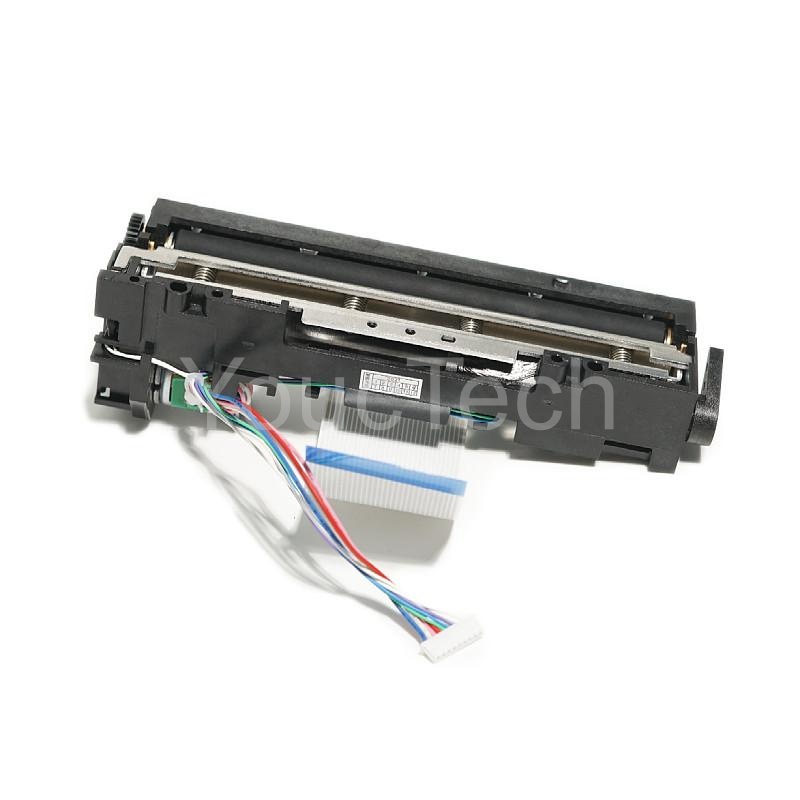

YC445A 110mm 4inch easy paper operation thermal printer head
YC445A is a fast print thermal printer head to improve print quality performance of mobile terminals. This printer mechanism is fully compatible with Seiko LTPV445. Its compactness and high reliability make it the trend of general market's favorites for pos applications.
Main Features:
High performance easy operation mechanism
Compact layout going with straight paper path
Vertical motor form structure
Low voltage 4.2~9.5 power supply
Max print speed 100mm/s
Label printing supported
Reliable print life more than 50km
Latch function structure open from front side
Our advantages:

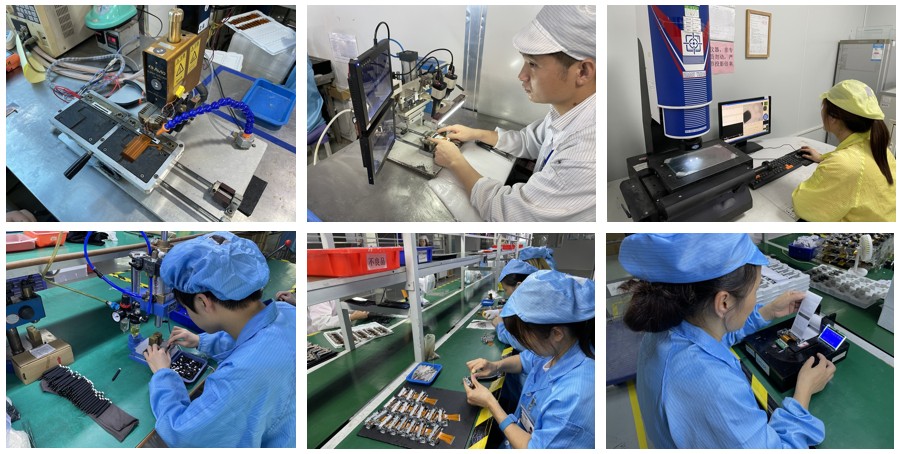

A. Accuracy Product Quality
YoucTech focuses on reliable quality thermal printer design and production. We don't do low quality products. We use good quality materials and establish a strict quality control system, from raw material purchase to printer assembly.
B. Skilled R&D team
Professional technicians and engineers with more than 15 years’ experience in thermal printing industries. We have been committed to providing the most prominent printing solution to customers and users.
C. Aggressive Business Mind
Through the experience from many oversea customers, we get a business mind for customer services.
(1) Reply inquiry within a working day.
(2) To turn CRM (Customer Relationship Management) system collecting complaint for better improvement
(3) Well trained staffs always try to understand customers' position first.

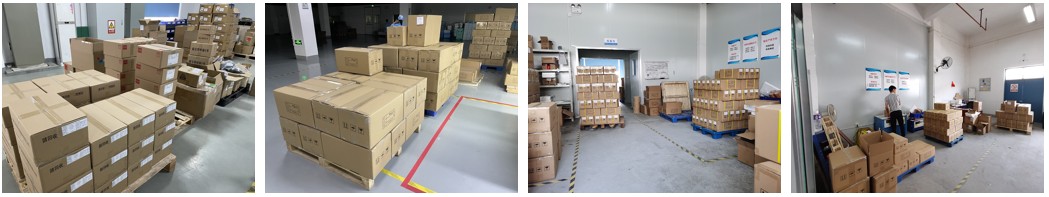

D. Fast delivery and Save customers' importing cost
We always prepare raw materials ahead of time and keep regular stocks for most hot selling printers. Quantities within 500~1000pcs can be delivered in 7~15 days' time. Our professional and reliable shipping agent teams help to save customers' importing cost in some way.
| Model | YC445A |
|
Compatible brand |
Seiko LTPV445 |
|
Printing method |
Thermal dot line printing |
|
Number of dots/line |
384 |
|
Resolution (dots/mm) |
8 |
|
Printing width (mm) |
48 |
|
Paper width (mm) |
58 |
|
Max printing speed |
90mm/s |
|
Paper feed pitch (mm) |
0.125 |
|
W*D*H (mm) |
70.2*33*15.3 |
|
Head temperature detection |
Via Thermistor |
|
Out of paper detection |
Via Photo interrupter |
|
Platen detection |
Via Mechanical switch |
|
Operation voltage (V) |
4.2~9.5 |
|
Logic voltage (V) |
2.7 ~5.25 |
|
Paper path |
Curved |
|
Average resistance |
176Ω |
|
Pulse activation |
≥100million (printing rate=12.5%) |
|
Abrasion resistance |
≥50km |
|
Operating temperature (°C) |
0～50 |
|
Operating humidity (RH) |
20％～85％ |
|
Storage temperature (°C) |
-25~70 |
|
Storage humidity (RH) |
5％～90％ |
Portable Label Printing
Medical Instrument
Measuring equipment
Weighing scales
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
