58mm desktop label barcode thermal printer
USB and serial interfaces
Maximum paper roll diameter: 80mm
Support QR CODE Printing
Item NO.:
YCP-58LPayment:
T/T, Paypal, Western UnionProduct Origin:
Xiamen, ChinaColor:
BlackShipping Port:
XiamenLead Time：
2~3 weeksProduct Item: 58mm desktop Label Thermal Printer with USB and serial interfaces YCP-58L

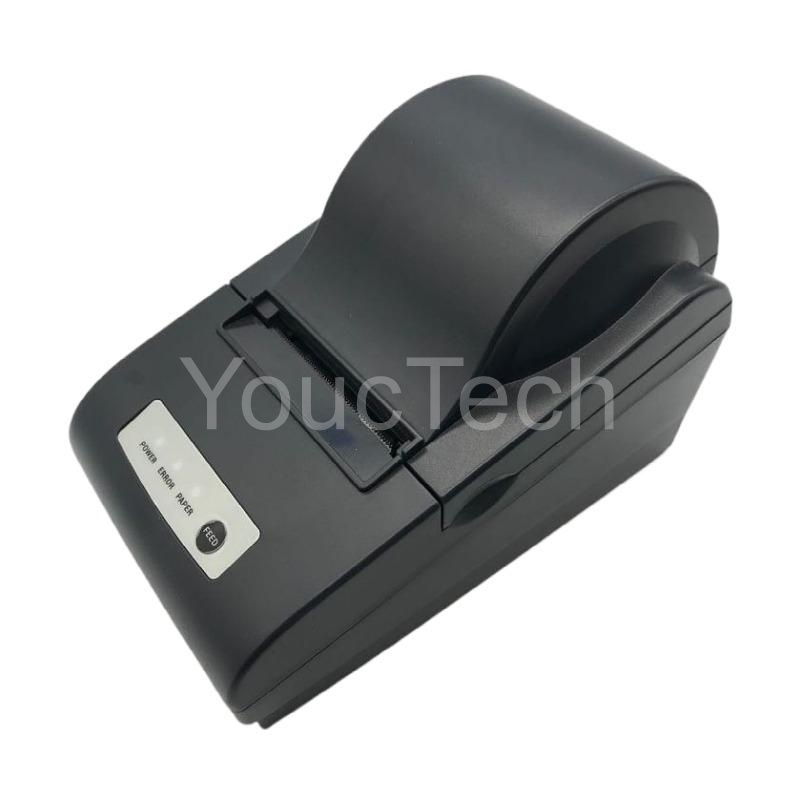

YCP-58L is a 58mm 2 inch desktop thermal printer for label and barcode printing. With combined interfaces of usb and serial, this label printer is easily direct printing from either mobile phone or PC systems.
Main features:
Refined and compact desktop printer
Low noise and high print quality
USB and serial ports supported
Optional communication Bluetooth
With cash drawer interface
Easy paper loading
Easily use and maintain
Support continuous paper printing

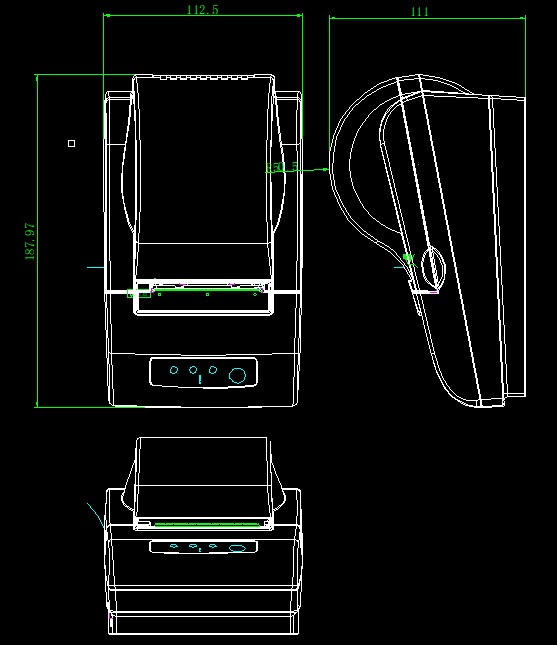

YCP-58L layout dimension
|
Model |
YCP-58L |
|
|
Printing |
Method |
Thermal line printing |
|
Speed |
50~90mm/s |
|
|
Resolution |
203DPI (8 dots/mm) |
|
|
width |
48mm (384 dots/line) |
|
|
Paper |
Type |
Thermal paper |
|
width |
58mm | |
|
Thickness |
0.06~0.08mm |
|
|
Roll diameter |
40mm | |
|
Reliability |
TPH | 50km |
|
Interface |
Standard |
BT2.0/4.0+USB |
|
Cutting type |
Manual |
Tear bar |
|
Character size |
ANK Character, Font A: 12*24 dots Font B: 9*17 dots Simplified/Traditional: 24*24 dots |
|
|
Barcode type |
UPC –A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODEBAR/CODE39/CODE93/CODE128/ITF, QR code |
|
|
Logo download |
Support logo，jpg download tool software |
|
|
Printing command |
ESC/POS command |
|
|
Driver available |
Windows 98/2000/2003/XP/Vista/Linux/7 |
|
|
Sensor |
Paper End Sensor, Mark Sensor |
|
|
Power supply |
External 12V/2A power adapter |
|
|
Rechargeable Ni-NH 7.4V NiMh, 1600mAh |
||
|
Color |
Black, Blue |
|
|
Outline dimension |
110(L)*80(W)*40(H)mm |
|
|
Accessories |
Paper manual, interface cable, power cable, power plug, paper roll |
|
|
After-sales service |
12 months warranty |
|
Smart retail billing
Packing lot instrument
Traffic penalty ticket
Taximeter receipt printing
Medical analysis
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
